Mathius SH6M - Wiring Diagram

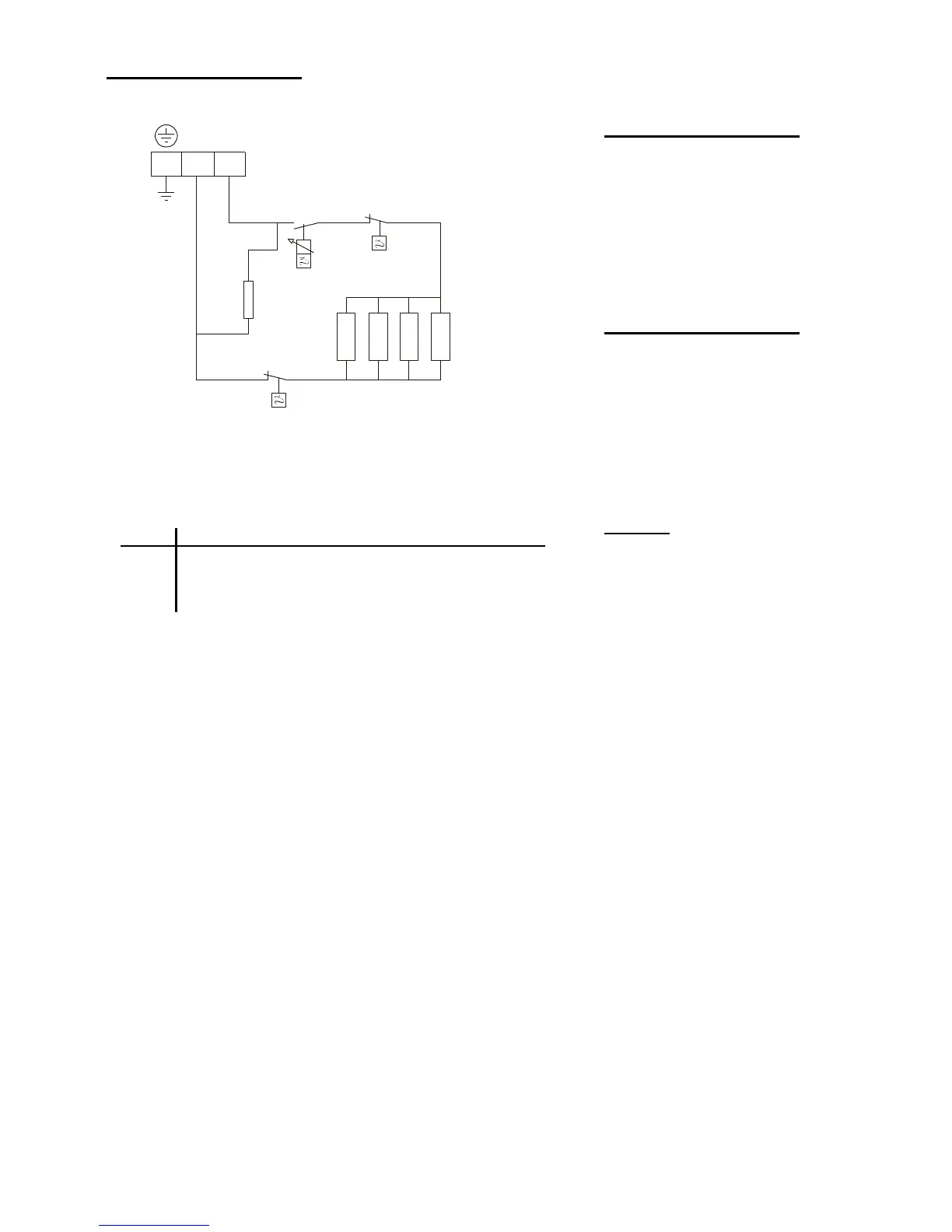

WIRING DIAGRAM
WIRING
RAC Accelerating Resistance
Tc Control thermostat
Ts Safety
PE Earth
L Live
N Neutral
R1, R2, R3, R4
Main heating elements
SH6M SH12M/A SH18M/A SH24M/A
R1 850W - 850W - 850W 850W
R2
-
-
850W - 850W 850W
R3
-
-
-
-
850W 850W
R4
-
-
-
-
-
850W
R1 R3R2 R4
Ts
Tl
Tc
RAC
PE
N L
