10

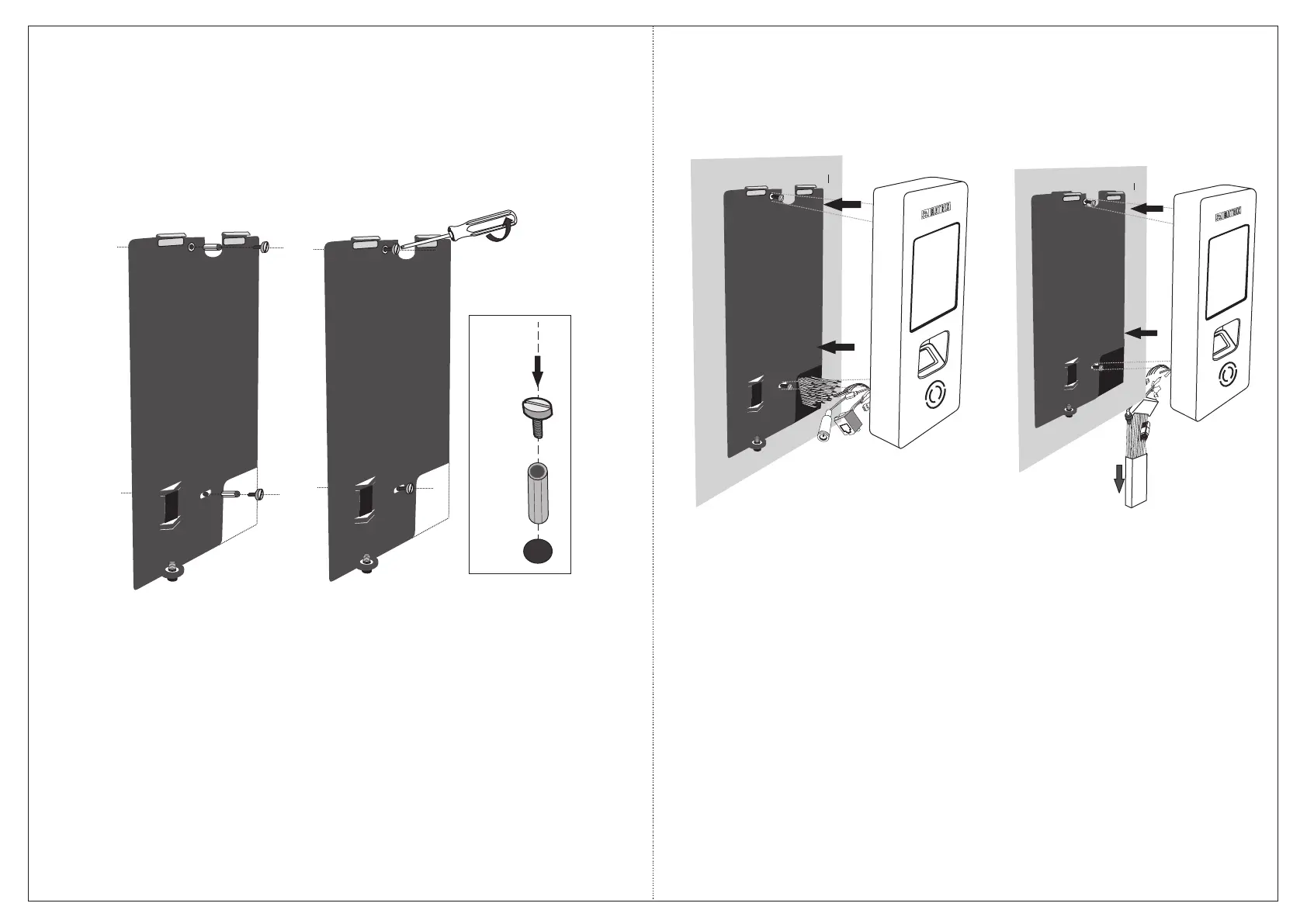

Step 2: Fix Mounting Plate with supplied screw grips & screws.
Screw
Screw
grip
Hole
B
A
C
B
A
C
Figure 10
Cables
Duct box
Step 4: Align COSEC VEGA with the Mounting Plate and slide
downwards.
Step 3: Connect cables and lead all the cables through the
rectangular hole into the electrical box recessed in the wall i.e.
concealed wiring or through the bottom of device in non-
concealed wiring.
Figure 11
