Matrix MD-S70 - Page 16

16
G
F
D
F
13

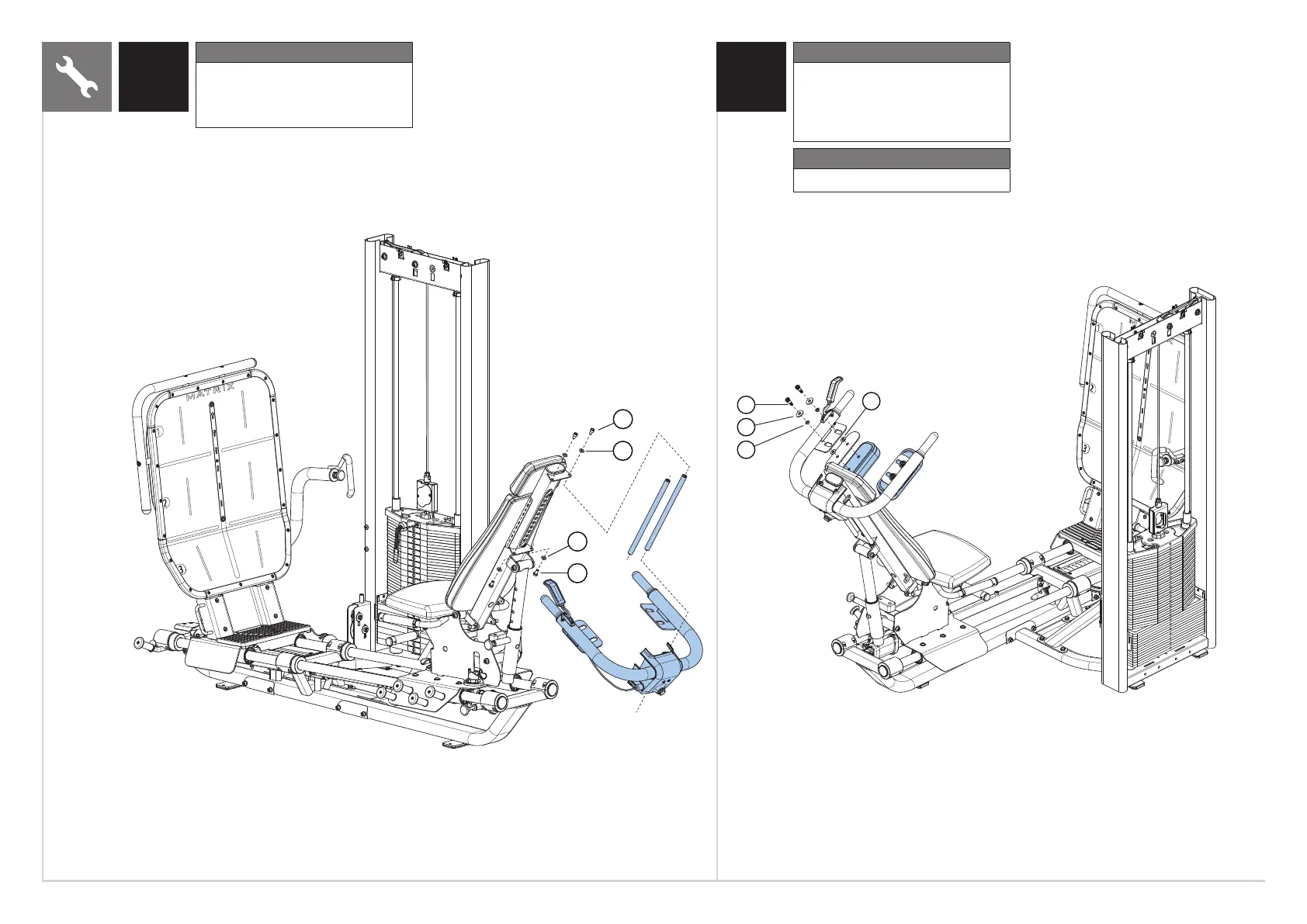

Step 13 Hardware
Description Qty
D
F
G
Hex Head Bolt (M10x20L)
Washer (Φ10.2)
Socket Head Bolt (M10x20L)
2
4
2
14
S
T
R
U
Step 14 Hardware
Description Qty
R
S
T
U
Special Screw
Nylon Washer (Φ13.2)
Plastic Spacer
Ring
4
4
4
4
Torque Value
2.5 Nm / 22 in -lbs
