16
Reversing the fridge door
We recommend you seek the help of another individual to support the
doors whilst performing this operation.
1. Open the door.
2. Carefully prise off the white cover
caps for the side that you wish to
switch the hinges to.
3. Loosen the screws that hold the
hinges to the fridge cabinet and
remove the door.
4. Remove the screws that secure the
hinge to the door.
5. Place the door somewhere
safe where it will not cause or
receive damage.
6. Relocate the hinges to their
opposing corners as shown in Fig.
10.
7. Refit the door to the hinges.
Do not turn the door upside down.
8. Insert the cover caps (3) on the
opposite side in the exposed holes.
9. Ensure that the door seal is correct,
as per page 17.

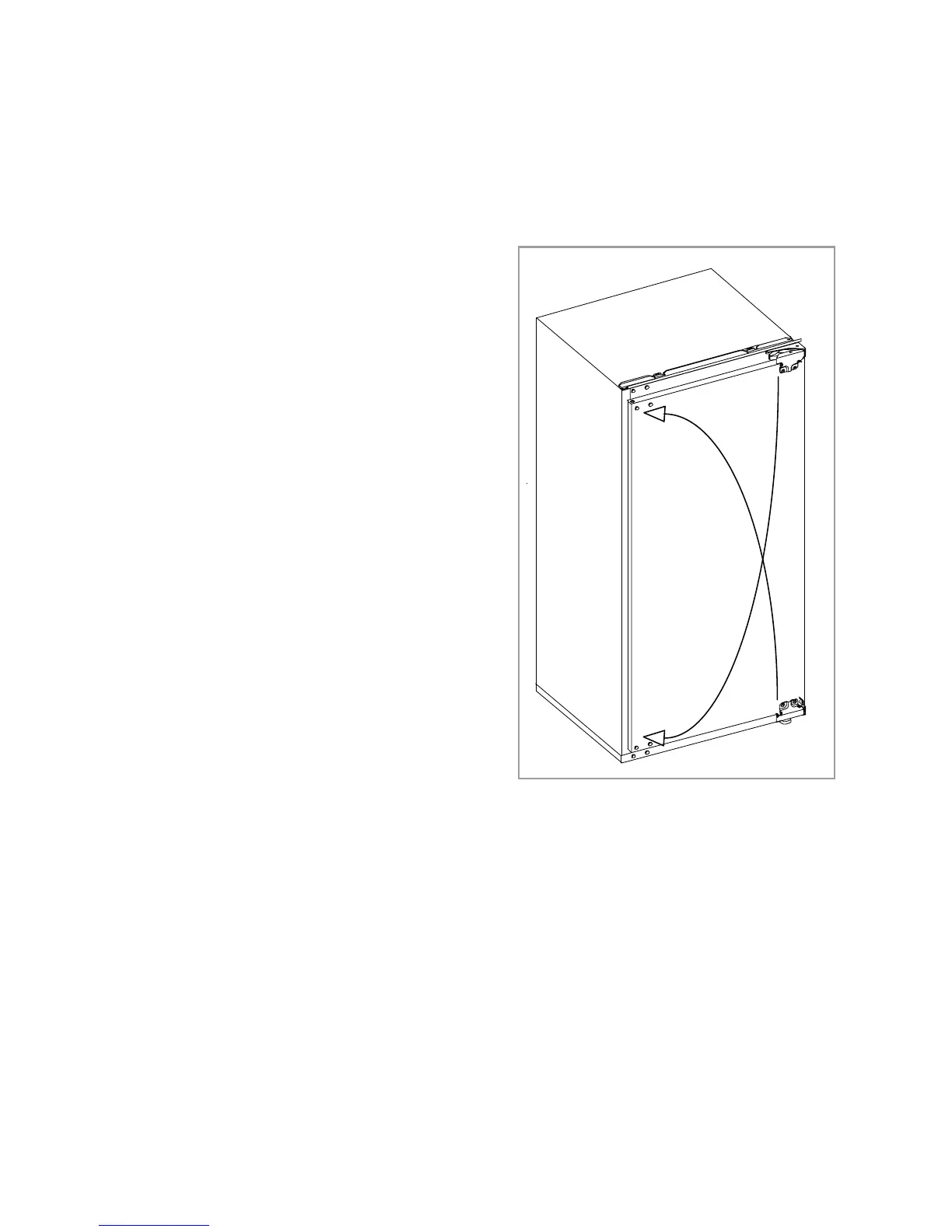

Fig. 10
