Matrix R50 Assembly Instructions

11
7
8
4
4
5
6
B
1
2
A
3

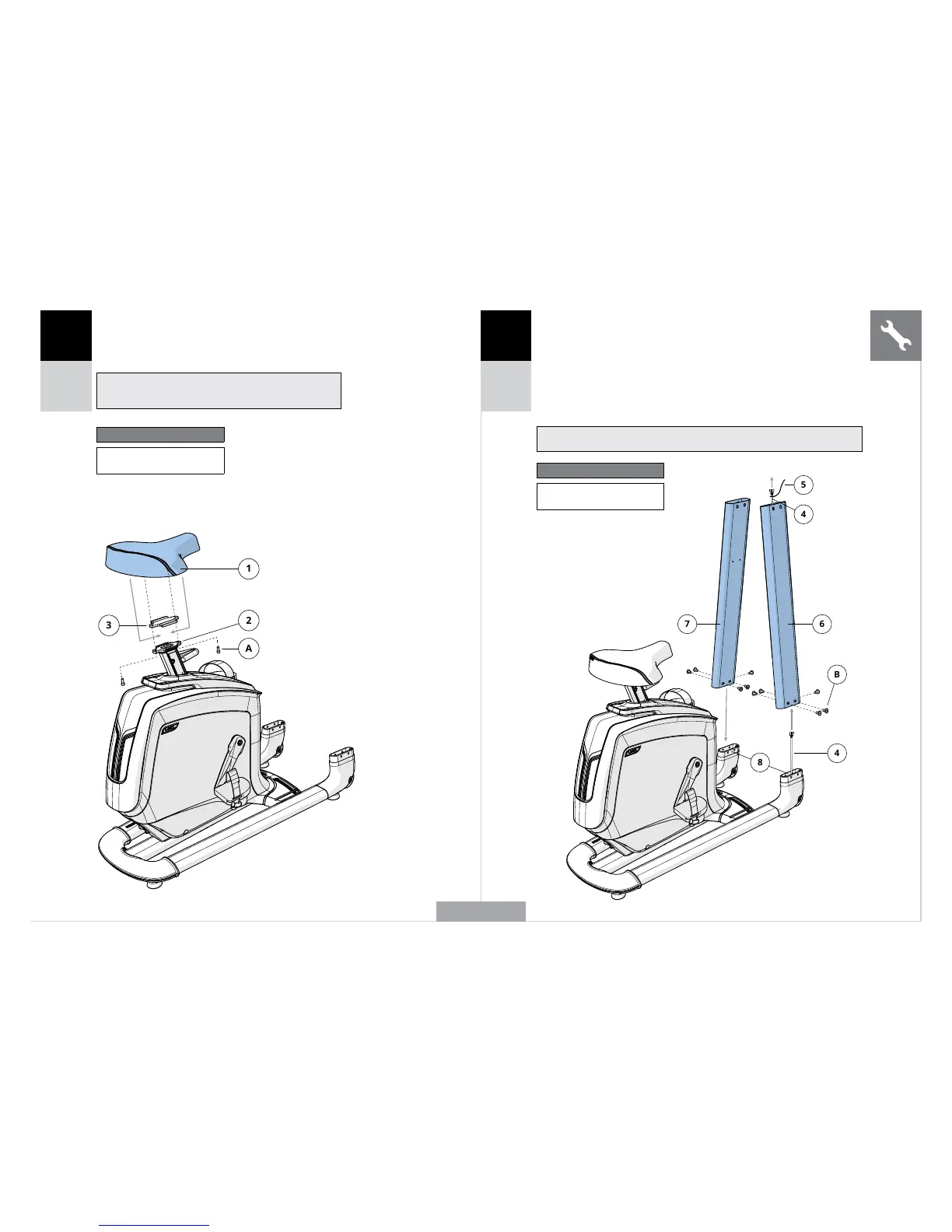

A Open HARDWARE FOR STEP 1.
B Attach the SEAT (1) to the SEAT POST (2)
using SEAT BRACKET (3) and 2 BOLTS
(A). Torque settings: 9.5 Nm / 7 lb-ft.
Note: Tighten the bolts evenly by alternating between
front and back until completely tightened.
1 2
Hardware For Step 1
Description Qty
A Bolt 2
U30
U50
U30
U50
U50 SHOWN
A Open HARDWARE FOR STEP 2.
B Carefully pull the CABLE (4) through the RIGHT CONSOLE
MAST (6) using the LEAD WIRE (5) located inside the
CONSOLE MAST (6). Discard the lead wire.
C Attach the RIGHT CONSOLE MAST (6) to
BIKE FRAME (8) using 5 BOLTS (B).
D Attach the LEFT CONSOLE MAST (7) to BIKE FRAME (8)
using 5 BOLTS (B). Leave bolts loose until after step 3.
Note: Be careful not to pinch any wires while attaching the console mast.
Hardware For Step 2
Description Qty
B Bolt 10
ENGLISH

Matrix R50 Specifications

General

Brand	Matrix
Model	R50
Category	Exercise Bike
Language	English
