Matrix R50 Assembly Instructions

7
D
E
8
9
10
3 4
R30
R50
R30
R50

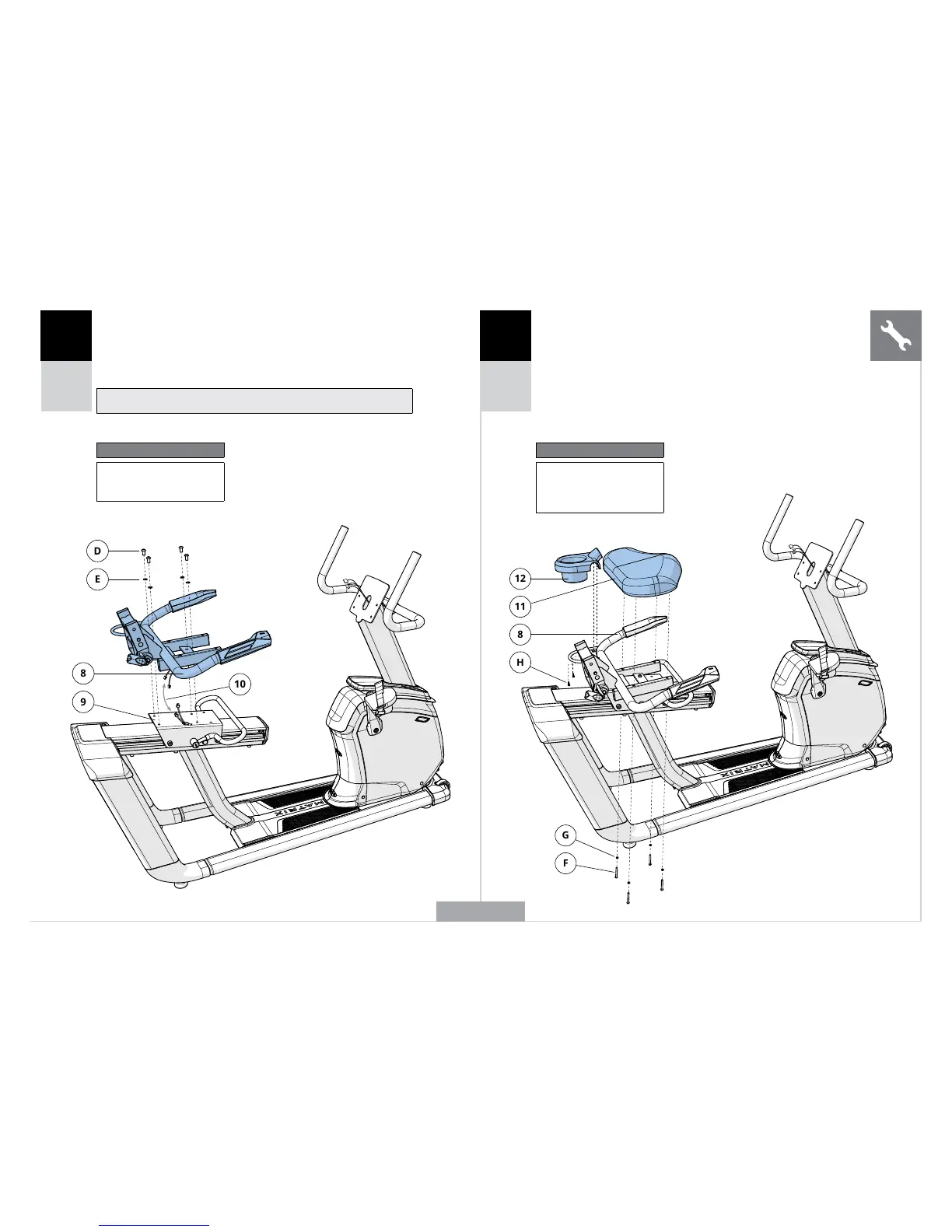

A Open HARDWARE FOR STEP 3
B Attach the SEAT FRAME ASSEMBLY (8) to the SEAT
SLIDE (9) using 4 BOLTS (D) and 4 SPRING WASHERS
(E). Torque settings: 23.1 Nm / 17 lb-ft.
C Connect the CABLES (10).
Note: Be careful not to pinch any wires while attaching the seat frame.
Hardware For Step 3
Description Qty
D Bolt 4
E Spring Washer 4
12
11
8
H
G
F
A Open HARDWARE FOR STEP 4
B Attach the SEAT BOTTOM (11) to the SEAT FRAME
ASSEMBLY (8) using 4 BOLTS (F) and 4 SPRING
WASHERS (G).
C Attach the WATER BOTTLE HOLDER (12) to the
SEAT FRAME ASSEMBLY (8) using 2 SCREWS (H).
Hardware For Step 4
Description Qty
F Bolt 4
G Spring Washer 4
H Screw 2
R50 SHOWN
ENGLISH

Matrix R50 Specifications

General

Brand	Matrix
Model	R50
Category	Exercise Bike
Language	English
