49
11
9
15
G
16
H
5 6
U30
U50
U30
U50
ITALIANO

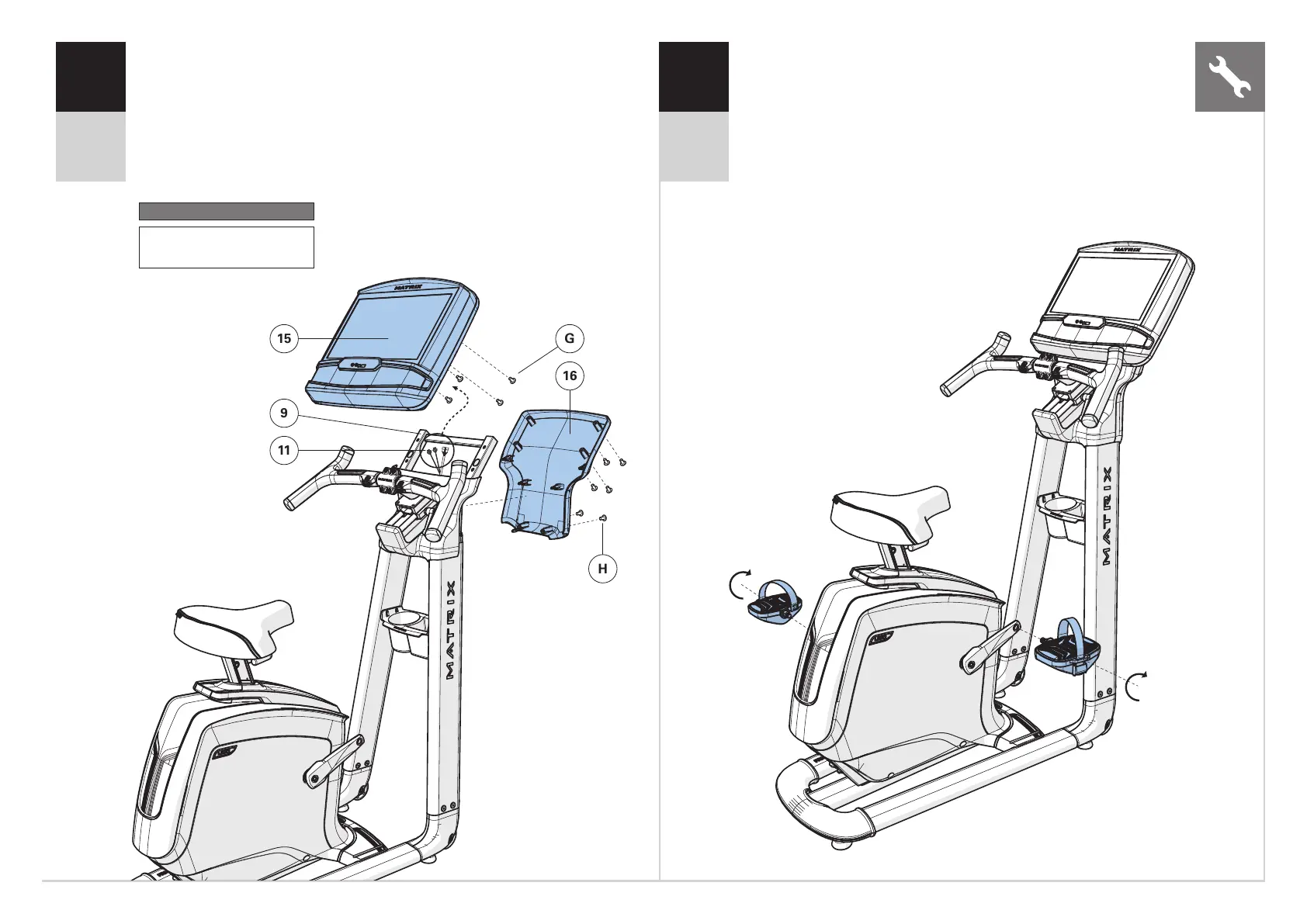

A Aprire I COMPONENTI PER IL PASSAGGIO 5.
B Collegare I CAVI (11) alla CONSOLE (15) e inserirli con cura nel PONTE
DELLA CONSOLE (9).
C Fissare la CONSOLE (15) al PONTE DELLA CONSOLE (9) usando
4BULLONI (G).
D Fissare la COPERTURA POSTERIORE DELLA CONSOLE (16) alla console (15)
e AL PONTE DELLA CONSOLE (9) usando 6 VITI (H).
A Fissare il PEDALE DESTRO al BRACCIO DEL PEDALE DESTRO,
stringerlo in senso orario con la chiave piatta da 13 mm / 15 mm
fornita.
B Fissare il PEDALE SINISTRO al braccio pedale sinistro, stringerlo
in senso antiorario con la chiave piatta da 13 mm / 15 mm fornita.
(NOTA: il braccio del pedale sinistro e ha una filettatura inversa,
dunque è molto importante che sia stretto in senso antiorario.
Stringendolo dalla parte opposta si può danneggiare il pedale,
ilbraccio o entrambi.)
Componenti per il passaggio 5
Descrizione Qtà
G Vite 4
H Vite 6
