Matrix R50 Manual

90
2
1
3
4
A
B
1 2
Hardware For Step 1
Description Qty
A Bolt 4
B Spring Washer 4
B
C
2
5
6
7
L
B
C
7
Y
Z
Y
Hardware For Step 2
Description R30 R50
C
B
L
Bolt
Spring Washer
Flat Washer
2
2
0
6
6
4
R30
R50
R30
R50
ENGLISH
Note: Be careful not to pinch any wires while
attaching the console mast.

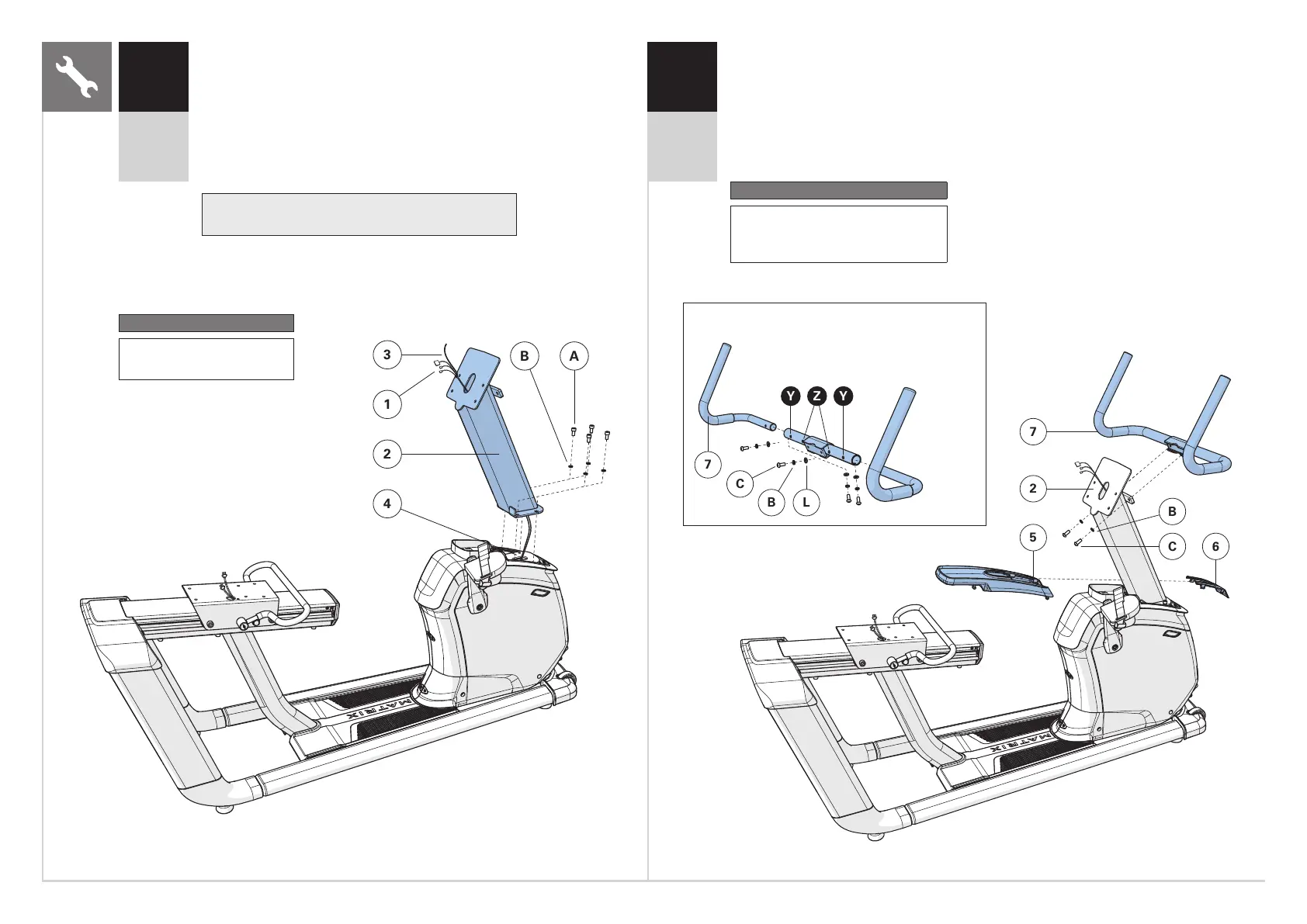

A Open HARDWARE FOR STEP 1.
B Carefully pull the CABLES (1) through the CONSOLE MAST (2)
using the LEAD WIRE (3) located inside the CONSOLE MAST
(2). Discard the lead wire.
C Attach the CONSOLE MAST (2) to MAIN FRAME (4) using 4
BOLTS (A) and 4 SPRING WASHERS (B). Torque settings: 23.1
Nm / 17 lb-ft.
A Open HARDWARE FOR STEP 2.
B Slide TOP CAP REAR COVER (5) over CONSOLE MAST (2) and snap into place.
C Slide TOP CAP FRONT COVER (6) over CONSOLE MAST (2) and snap into place
D Attach HANDLEBARS (7) to CONSOLE MAST (2) using 2 BOLTS (C) and 2 SPRING
WASHERS (B). Torque settings: 23.1 Nm / 17 lb-ft.
R50
Y Use outside holes for XUR console
Z Use inside holes for all other consoles

Matrix R50 Specifications

General

Brand	Matrix
Model	R50
Category	Exercise Bike
Language	English
