Matrix R50 Manual

92
I
9
14
14
13
9
I
C
15
J
5 5
Hardware For Step 5
Description Qty
C Bolt 4
I Spring Washer 4
J Screw 3
Hardware For Step 5
Description Qty
I Bolt 6
R30 R50
ENGLISH
NOTE: This step is for R30 models only.
A Open HARDWARE FOR STEP 5.

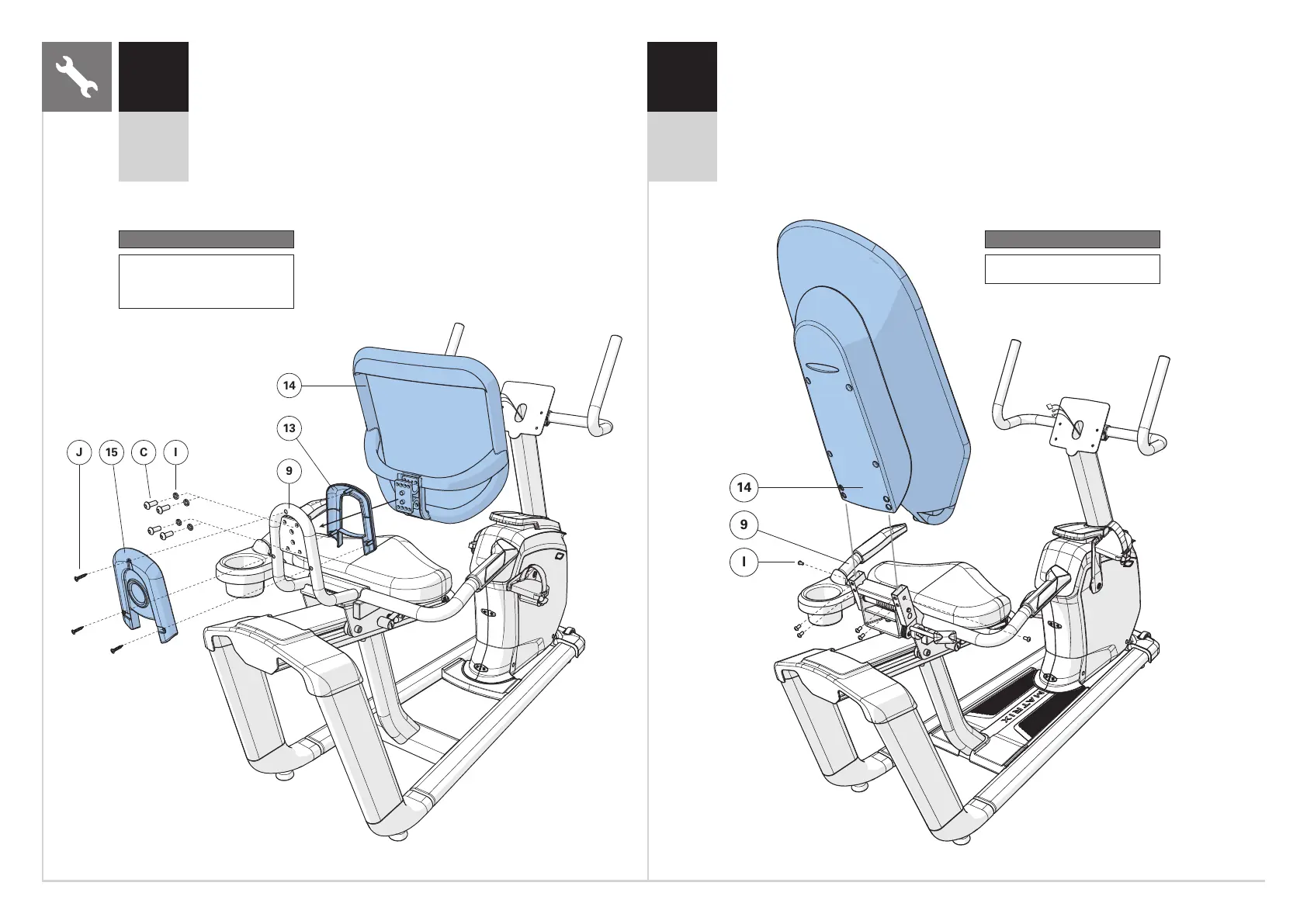

B Place the INSIDE COVER (13) over the MESH SEAT BACK (14)
and mount the MESH SEAT BACK (14) to the SEAT FRAME
ASSEMBLY (9) with 4 BOLTS (C) and 4 SPRING WASHERS (I).
Torque settings: 23.1 Nm / 17 lb-ft.
C Attach the OUTSIDE COVER (15) to the SEAT FRAME (9) and
INSIDE COVER (13) with 3 SCREWS (J).
NOTE: This step is for R50 models only.
A Open HARDWARE FOR STEP 5.
B Attach the MESH SEAT BACK (14) to the SEAT FRAME ASSEMBLY
(9) using 6 BOLTS (I). Torque settings: 9.5 Nm / 7 lb-ft.

Matrix R50 Specifications

General

Brand	Matrix
Model	R50
Category	Exercise Bike
Language	English
