Hard Disk Cable Routing
1. Inside the package you will find four SATA cable in NVR3204X and NVR6404X and eight in
NVR6408X for each hard disk.

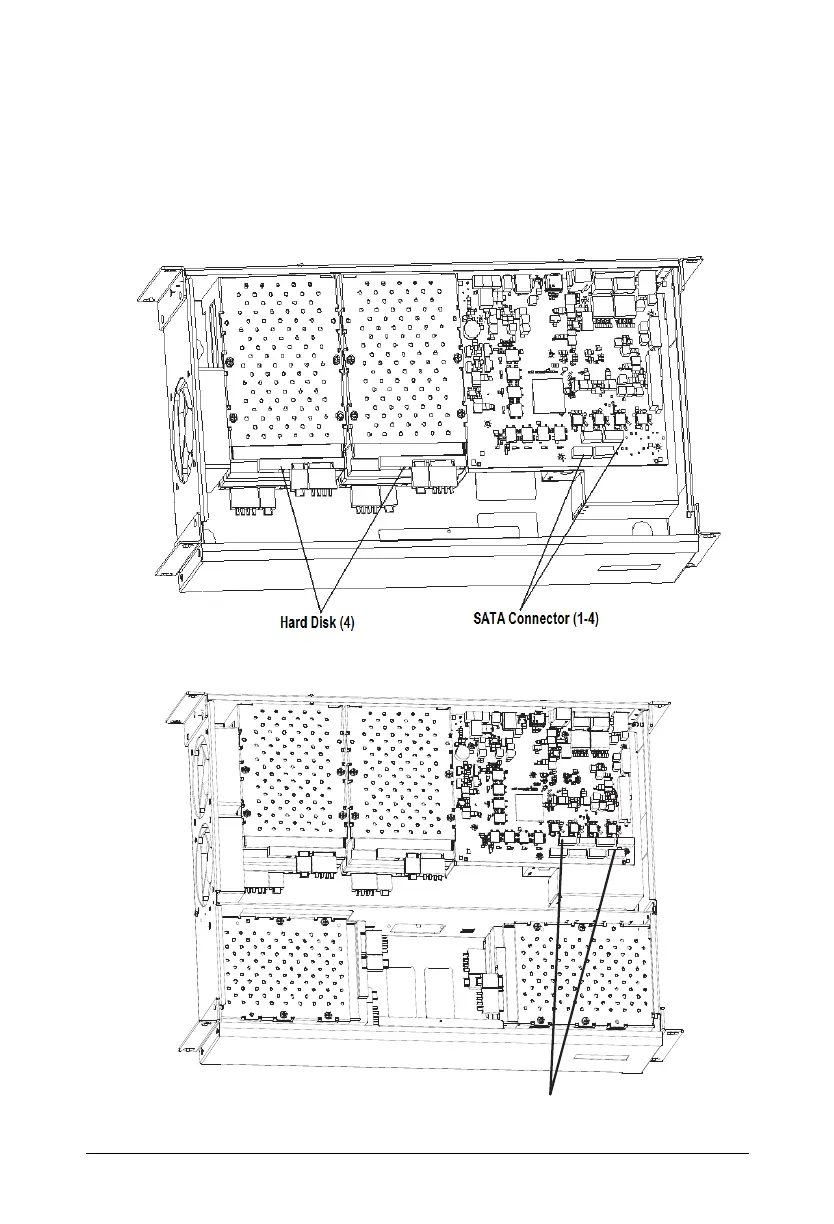

2. Plug the SATA cables and power cables into the respective connectors shown below on the
hard disk.
Similar connection can be done in NVR6408X. Connectors are shown below.
SATA
Connectors(1-8)
