68 Matrix SATATYA Devices Manual

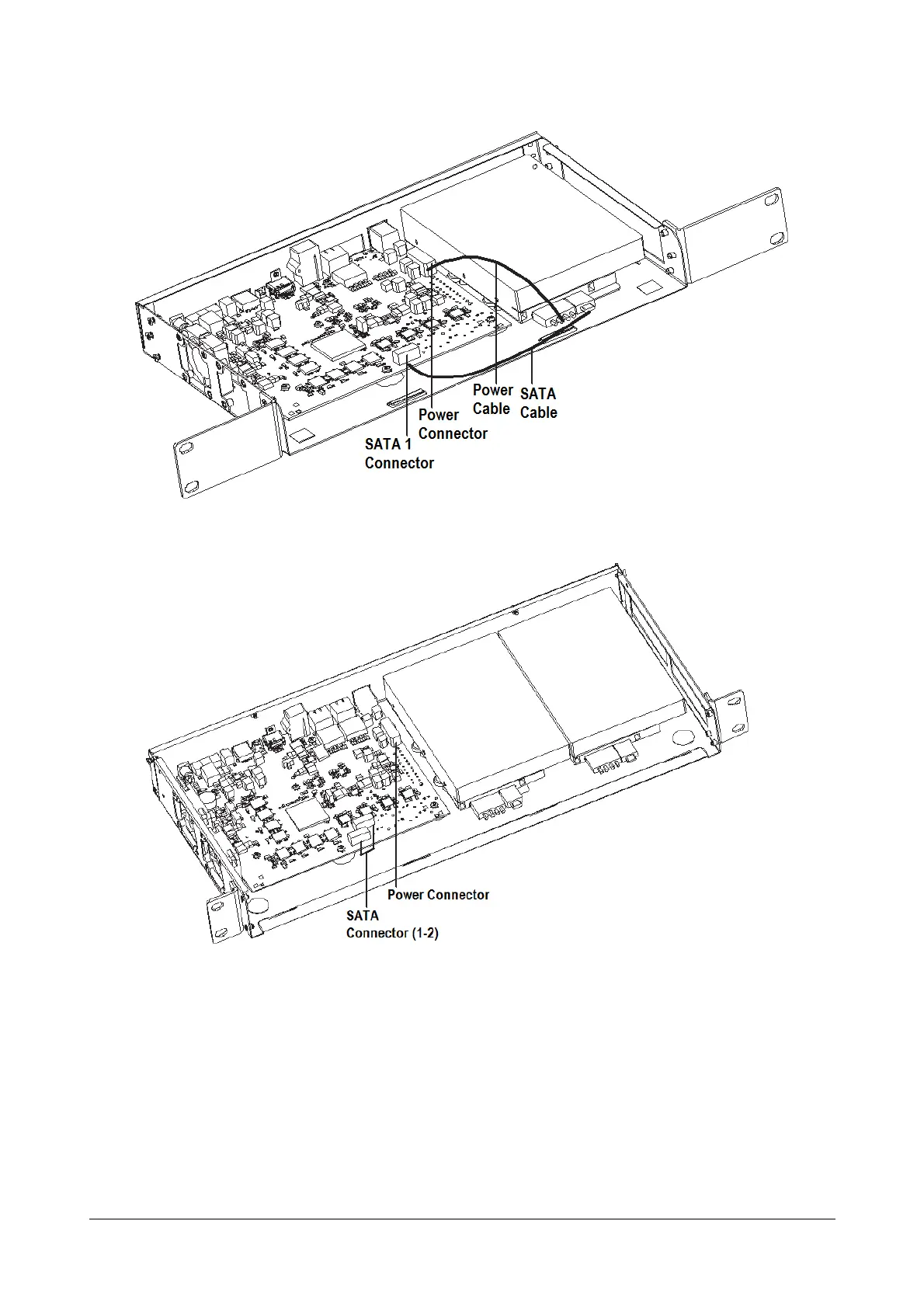

NVR0801X/NVR1601X
Similar connection can be done in NVR1602X/NVR3202X. Connectors are shown below.
NVR3204X/NVR6404X HDD Installation
Hard Disk Mounting
1. Loosen the screws at the side panel to remove the top cover.
2. Take the clamp and Place the Hard Disk inside the clamp. Secure the HDD inside the Clamp with the four screws
provided using the magnetic screw driver.
