SATATYA HVR Variants Dimensions
HVR 16/8P:

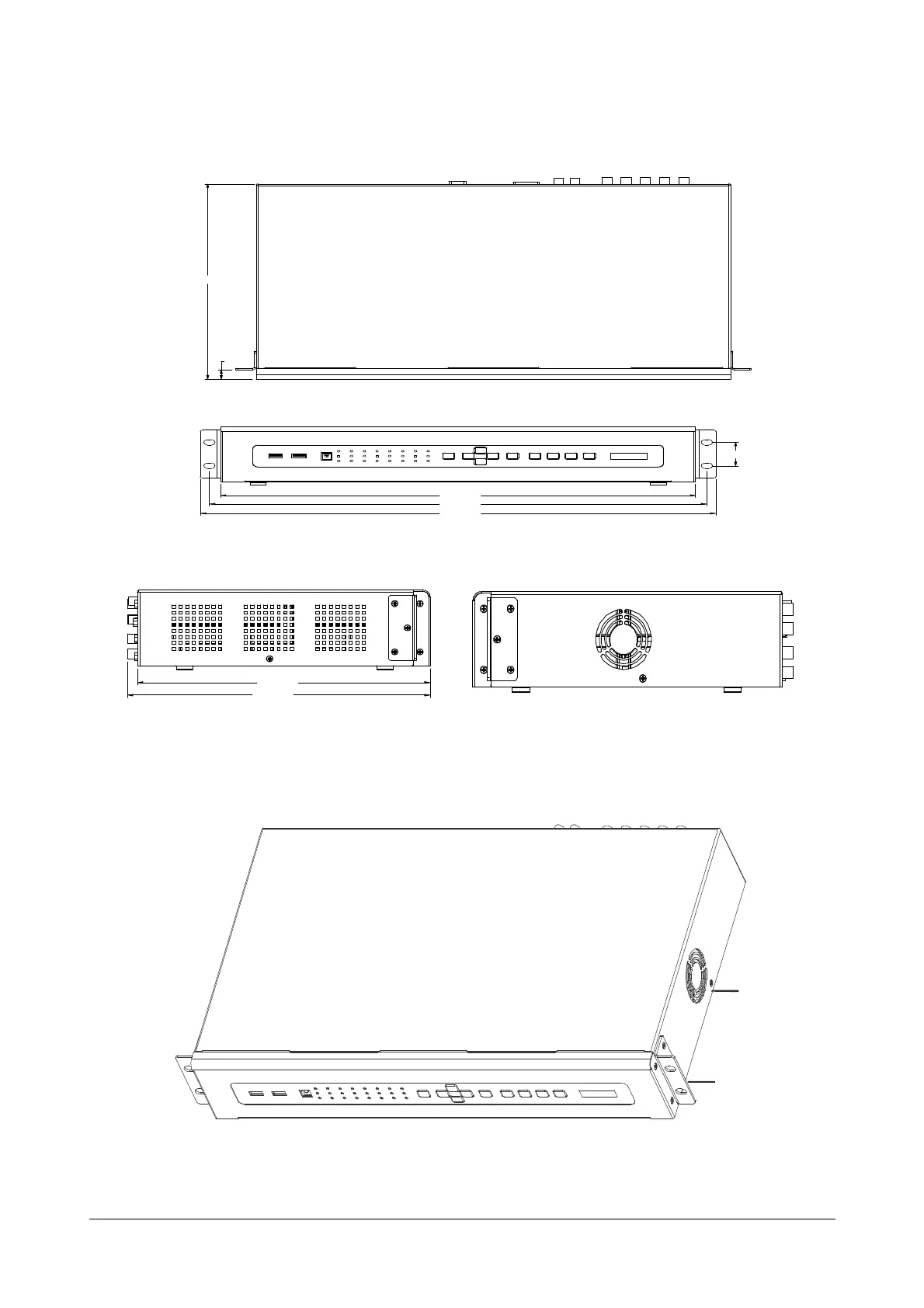

General layout of the HVR 16/8P
265.00
12.75
445.00
466.00
483.00
31.75
FRONT VIEW
TOP VIEW
265.00
274.00
LEFT VIEW
RIGHT VIEW
FAN
FRONT VIEW
SIDE CLAMP
