9.14 DRIVE BELT REPLACEMENT
1) Remove the right side shroud as outlined in Section 9.11.
2) Pull up on the tension assembly and walk the belt off of the pulley (Figure A).
3) Remove the belt (Figure B).
4) Reverse Steps 1-3 to install a new drive belt. NOTE: Be sure to reattach the tension spring (Figure C). If more tension is needed on the
drive belt, multiple holes are available for the lower spring attachment (Figure D).
5) Test the bike for function as outlined in Section 9.21.

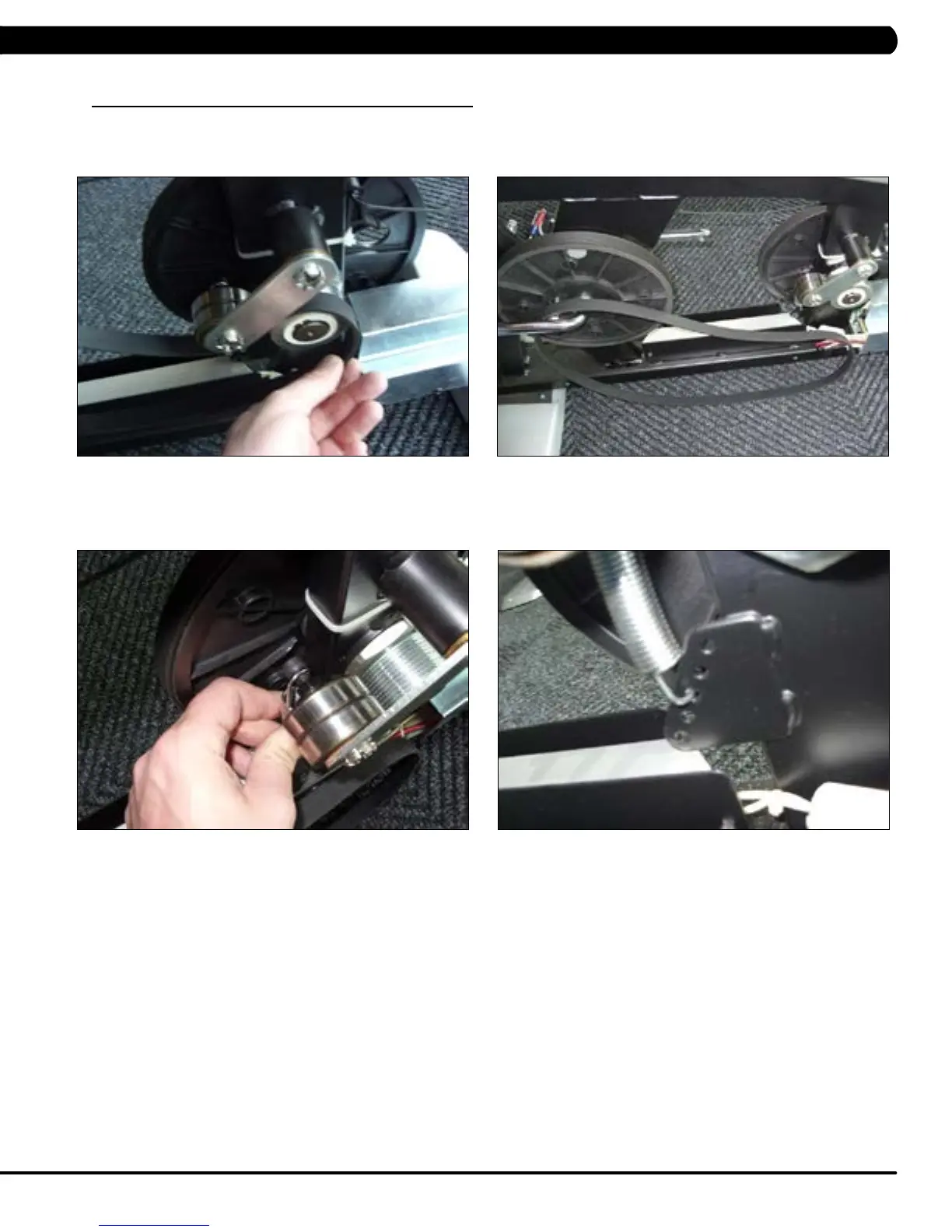

FIGURE A FIGURE B
FIGURE C
FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
