Matrox Monarch HD - Page 2

Matrox is a registered trademark and Monarch is a trademark of Matrox Electronic Systems Ltd.
Y11349-601-0100 Copyright © 2015 by Matrox Electronic Systems Ltd. All rights reserved. Printed in Canada.

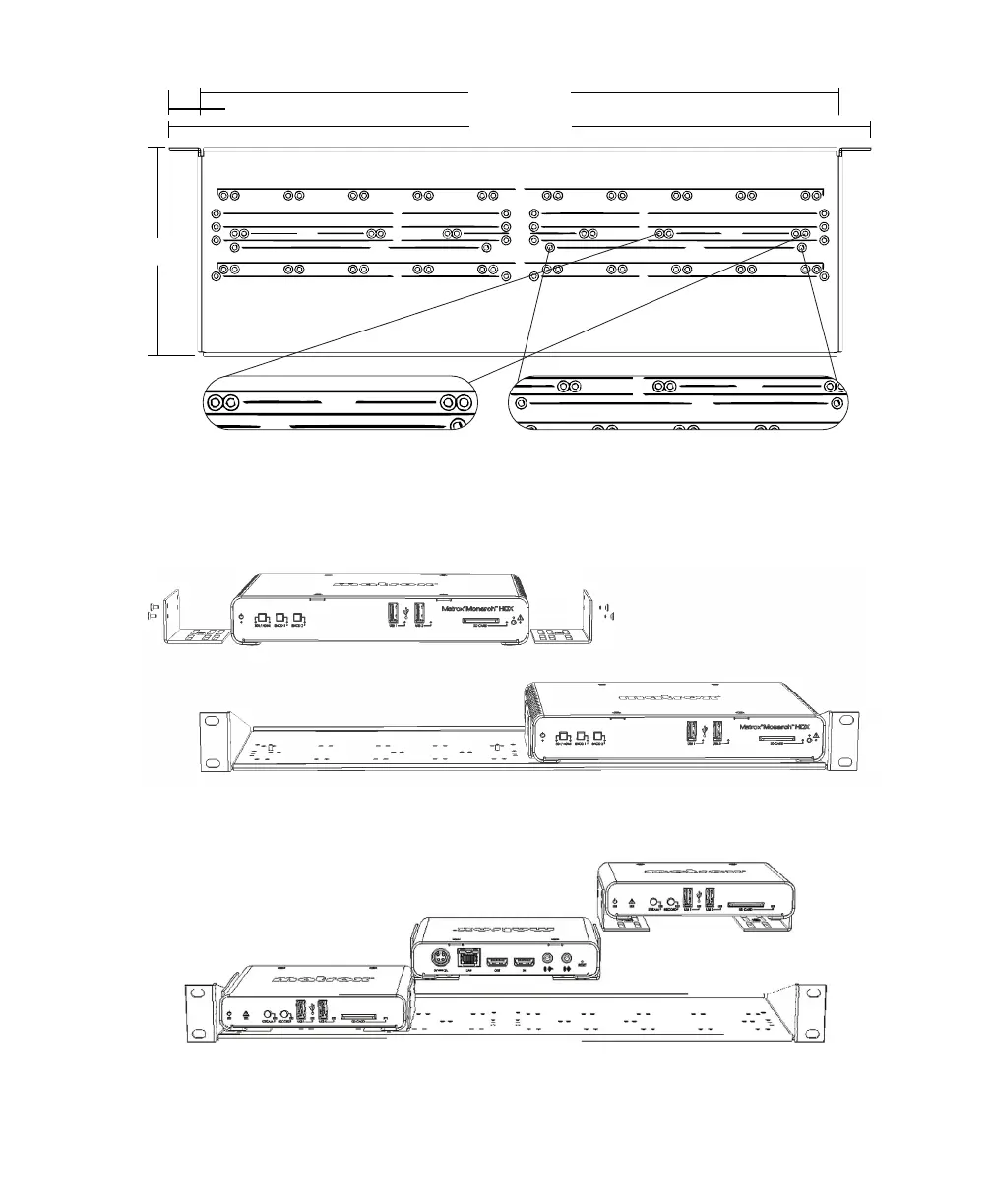

Monarch HD and Monarch HDX mounting
M
M
M
M
A
A
A = AVIO
M = MAEVEX
AUX = AUXILLARY
M / M = MAEVEX / MONARCH
P/N: F2920-02 REV B
M / M M / M
M
M
A
A
M / M
AUXAUX
19.00" / 48.26 cm
0.85" / 2.16 cm
17.30" / 43.94 cm
5.64" /
14.33 cm
M
A
M / M
AUX
M / M
AUX
MONARCH HD
Use the outer “M / M” holes
MONARCH HDX
Use the “AUX” holes
NOTE: Secure the angled
brackets to Monarch before
attaching Monarch to the
mounting shelf. Use lower screw
holes for Monarch HDX, upper
screw holes for Monarch HD.
MONARCH HD
MONARCH HDX
