MANUAL TILT ADJUSTMENT
4 / 5
Page
3
When done, push the handle back in, screw the waterproof cap back to the position.
3.00
1

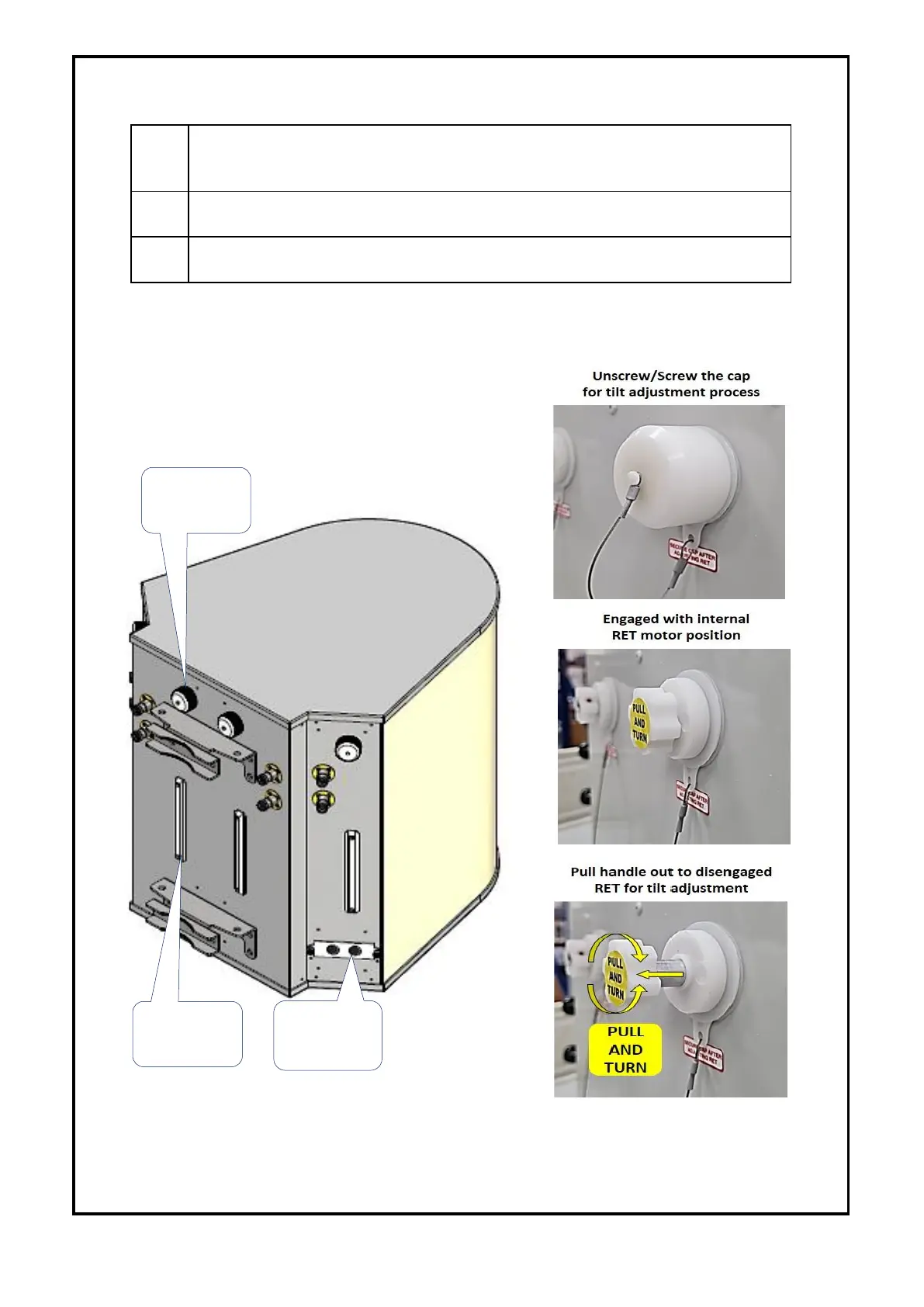

The MBA antenna come in RET mode as default, but if needed can also be manually
adjusted. To do so, please unscrew the waterproof cap behind the element whose tilt is
to be adjusted.
2
By Default the knob is on engaged mode, pull out the handle for manual tilt
adjustment, turn the handle to change the tilt.
Tilt
Adjustment
Knob
Angle
Indicator
RET
Controller
