Installation
1. Remove the Ice Spoon, Water Inlet Tube, Water Drainage Pipe and Sealing Washers from the ice storage
cabinet. (does not apply for M-ICE 15)
2. Choose a surface where the ice maker is not exposed to direct sunlight, or close to a direct source of heat
such as a cooker, oven or radiator.
3. When placing the ice maker, make sure the power cable is accessible at all times.
4. When positioning the Ice Maker, maintain a distance of 10cm (4 inches) between the appliance and walls or
other objects for ventilation. Increase this distance if the obstacle is a heat source.
5. If necessary, adjust the screw legs to level the machine. The Ice Maker may operate less efficiently if not
level.
6. Set up the device near a water supply connection. (does not apply for M-ICE 15)
7. Connect one end of the water drainage pipe to the water outlet at the rear of the Ice Maker. Attach the
other end of the pipe to a water sewage pipe or container suitable for collecting waste water. (does not
apply for M-ICE 15)
8. Connect one end of the water inlet tube to the machine and the other end to your fresh water supply. Make
sure to put sealing washers in both ends of the tube before connecting them. (does not apply for M-ICE 15)
9. After placement, leave the appliance in its current position for at least an hour to let the refrigirant
precipitate. After this period, plug in the power cable.
10. When the appliance is moved to another location it needs time to acclimatize. (the appliance needs to
adjust to the change in temperature). Allow the appliance to do so for several hours. The ambient
temperature should not be below 6 °C.

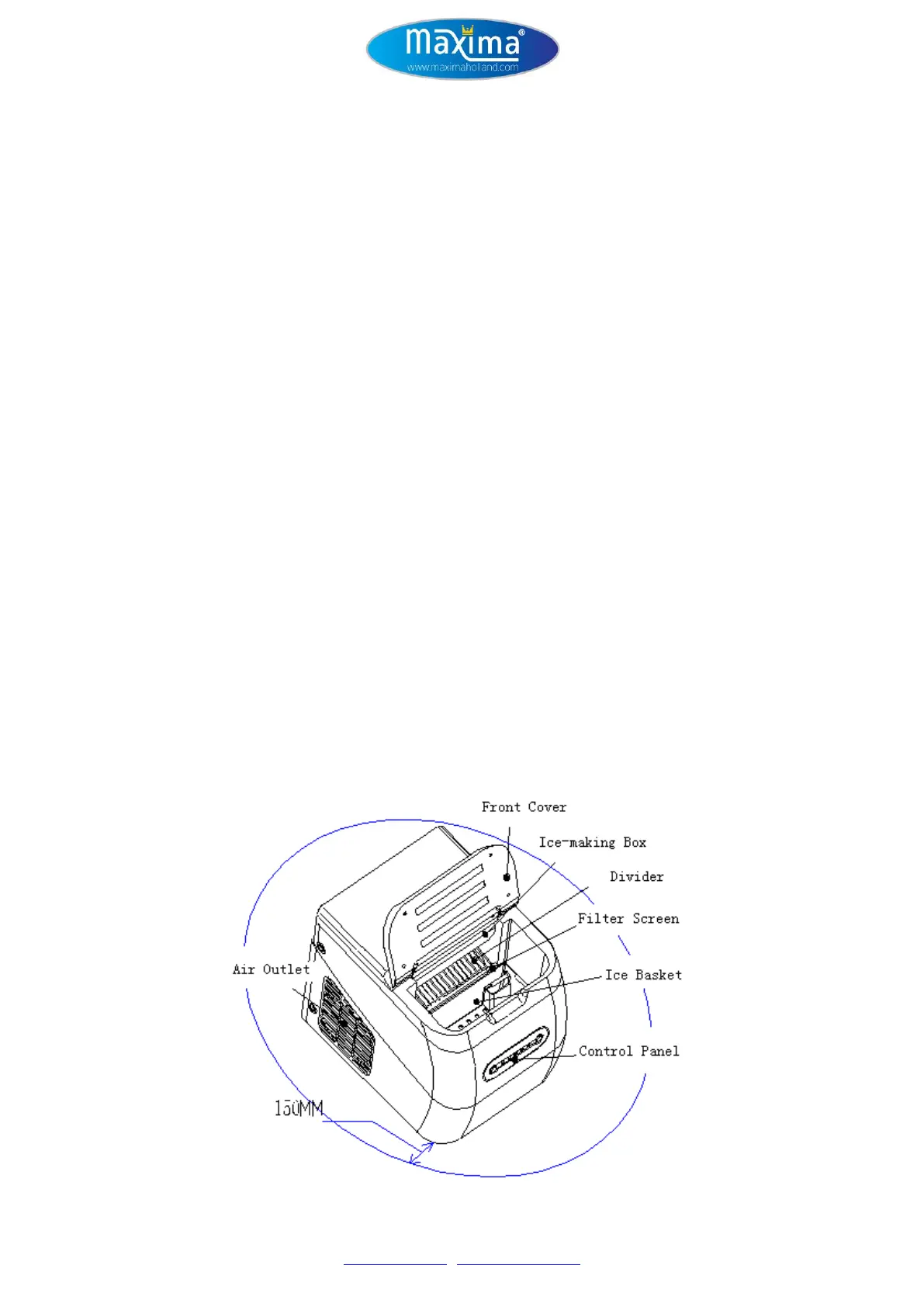

M-ICE 15 Structure
