Maximum 054-2433-0 User Manual

16
model no. 054-2433-0 | contact us 1-888-670-6682

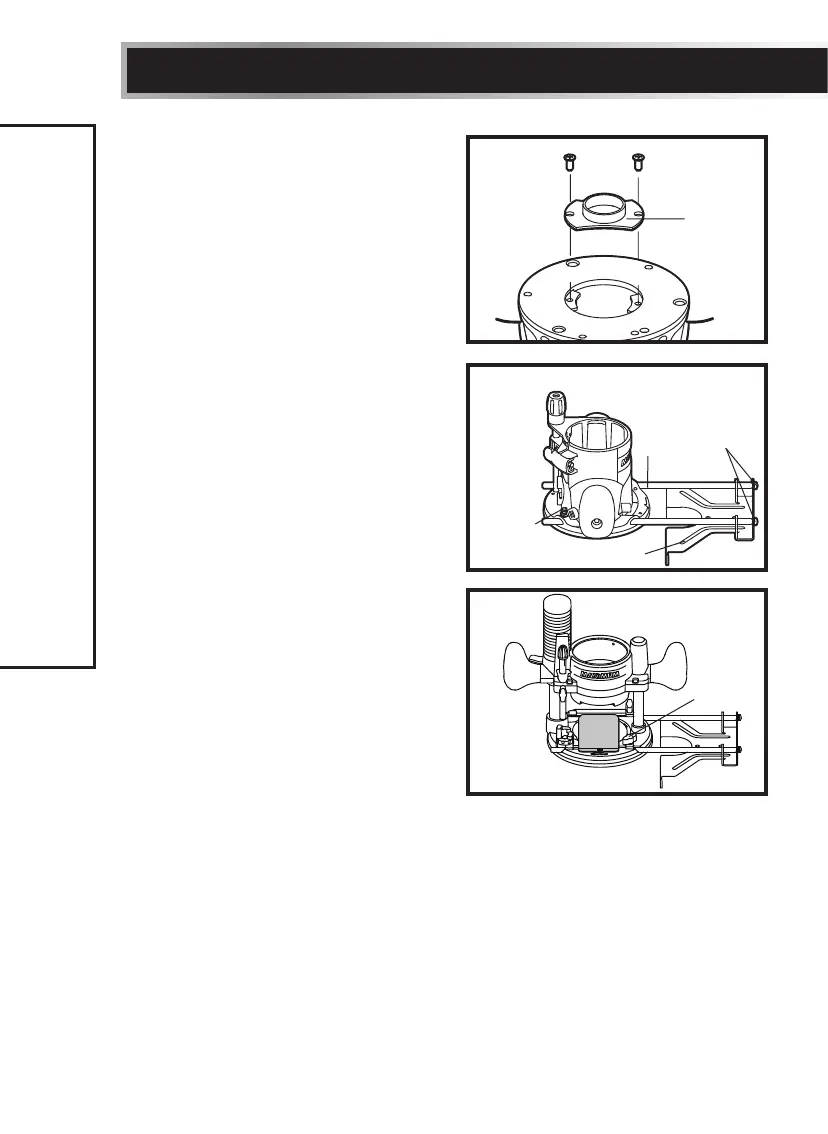

INSTALL THE COPY RING (fig 10)
To attach the copy ring onto either the
fixed or plunge base, position and secure
it to the base with the screws (included).
EDGE GUIDE (fig 11)
The router combo kit comes with an
edge guide. This edge guide can be used
as an aid in routing applications such as
decorative edging, straightedge planing
and trimming, grooving, dadoing, and
slotting.
To assemble the edge guide, insert two
edge-guide rods into the holes on the edge
guide, and then use two screws (included)
to lock the edge-guide rods in place.
To attach the edge guide to the fixed
or plunge base, simply insert the edge-
guide rods into the edge-guide mounting
slots either from the left or the right.
Adjust the edge guide to the desired
position and then secure the edge guide
by turning two locking screws.
OPERATING INSTRUCTIONS
fig 10
fig 11a
Rod
Locking
screw
fig 11b
Locking
screw
Copy
ring
Edge guide
Screws
