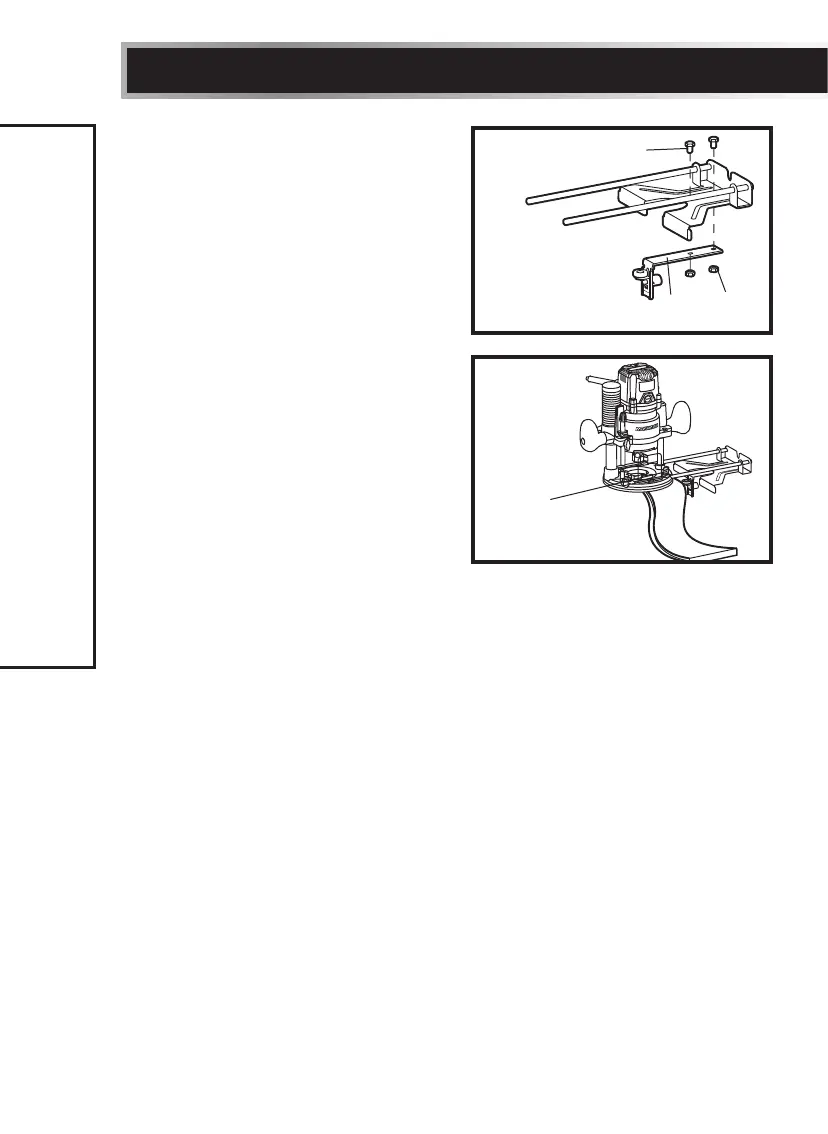

COPY THE SHAPE (fig 21)
1. Mount the guide bush (with guide
roller mounted) as illustrated
2. Insert the rods of the edge guide into
the base plate.
3. Turn the locking screw clockwise to
tighten the rods.
4. Turn on the router and guide it along
the workpiece edge with light sideward
pressure.
5. Adjust the edge guide to different
places and you will obtain the same
shape as the workpiece edge.
OPERATING INSTRUCTIONS
fig 21a
Screw
Guide
bush
fig 21b
Locking
screw
Nut
