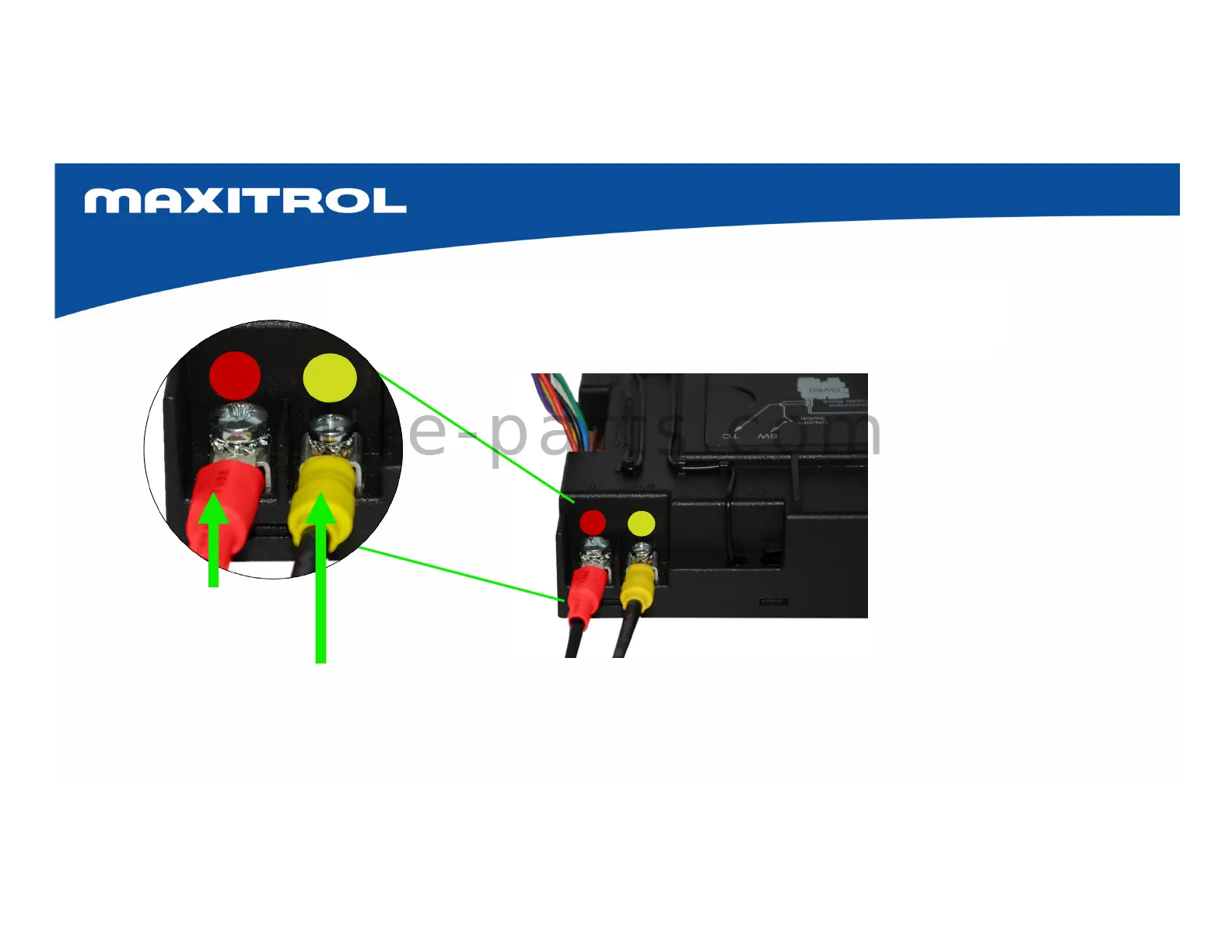

Maxitrol GV60 - Thermocouple Interrupter Circuit Connections

35
Red Terminal:
from Thermocouple
Yellow Terminal:
back to ON/OFF Switch
WARNING: The
thermocouple interrupter
circuit is polarity sensitive.
Make certain the red cable
(1/4”) is connected to the
red terminal, and the
yellow cable (3/16”) is
connected to the yellow
terminal. Verify that the
connections are tight.
Receiver Components
Thermocouple Interrupter Circuit Connections
