Maxon OD9 - SD9 Connection Diagram and Specifications

TONE
DIST.
LEVEL
IN
OUT
Input Impedance
Output Impedance
Maximum Gain
Equivalent Input Noise
Controls
Switch
Power Supply
Battery life
Power Consumption
Dimensions
Weight
Options
* Specifications are subject to change without notice.
: 500k ohms
: 10k ohms or less
: 42dB (at 2.0kHz)
: -115dB or less (input shorted IHF-A weighted)
: DIST, TONE, LEVEL
: EFECT / True BYPASS
: 9V battery (6F22 or 6LR61) x 1
or Maxon AC adaptor
: manganese dry battery more than 76hours 25deg C / 77deg F
(Panasonic 6F22NB)
: 6mA / 9V 7mA / 10V
: 124(D) x 74(W) x 54(H) mm
: 580g (including battery)
: Maxon AC adaptor (9-10VDC)
11

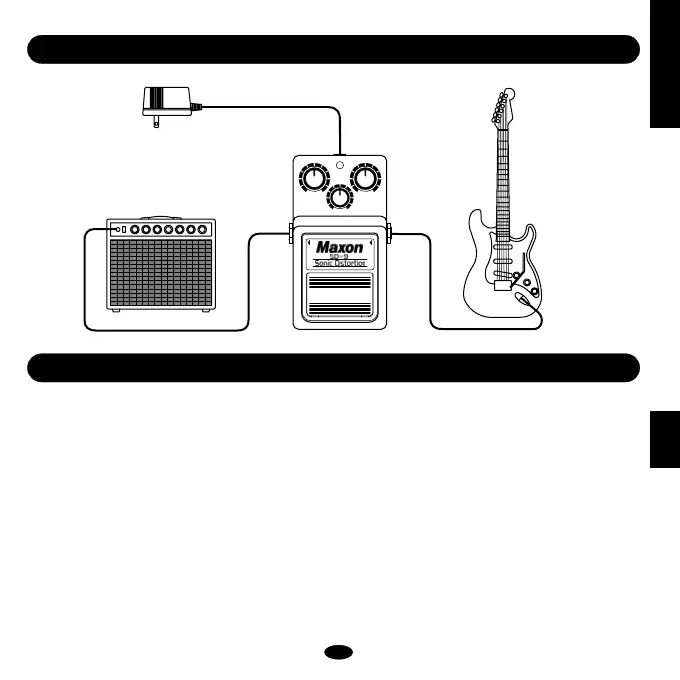

CONNECTION DIAGRAM
SPECIFICATIONS
SD9
ENGLISH
