Maxon OD9 - PT9 Pro+ Connection Diagram and Specifications

Input Impedance
Output Impedance
Maximum output level
Control
Speed Frequency
Indicators
Residual Noise
Internal circuit voltage
Power Supply
Power Consumption
Dimensions
Weight
Battery life
: 500k ohms
: 10k ohms
: +18dBu (1kHz)
: SPEED FEEDBACK WIDTH
: 0.055 to 8.3Hz (18Sec to 120mSec)
: Effect LED RATE LED
: -95dBu (Input shorted, IHF-A weighted)
: Stabilized ±9V DC-DC Converter
: 6F22 9V manganese dry
cell battery x 1 or Maxon AC adaptor
: 32mA/9VDC 30mA/10VDC
: 124(D) x 74(W) x 54(H)mm
: 580g (including battery)
: Panasonic NEO battery 6F22NB
Approx 3.0 hours @ 77deg F / 25deg C
Panasonic ALKALINE battery 6LR61G
Approx 8.4 hours @ 77deg F / 25deg C
※Specifications are subject to change without notice.
23

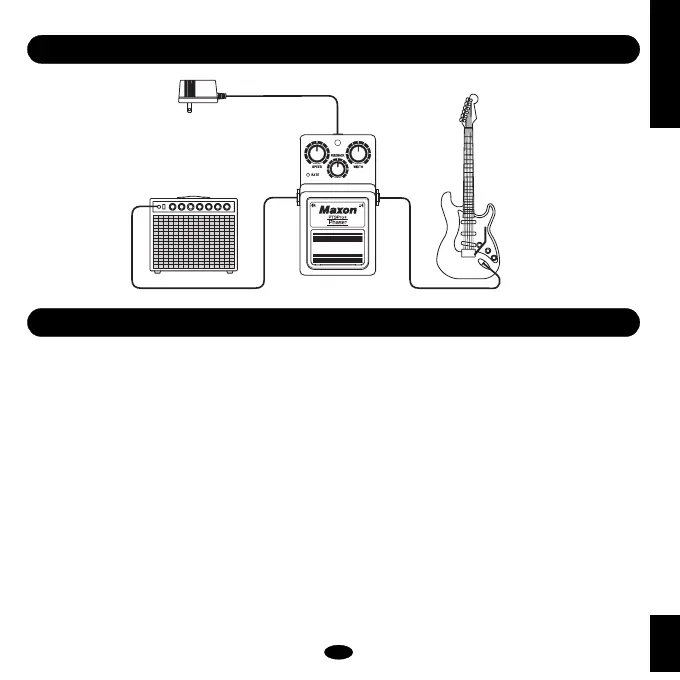

CONNECTION DIAGRAM
SPECIFICATIONS
ENGLISH
PT9Pro+
