Maxon OD9 User Manual

TONE
DRIVE
LEVEL
IN
OUT
Input Impedance
Output Impedance
Maximum Gain
Equivalent Input Noise
Controls
Switch
Power Supply
Battery life
Power Consumption
Dimensions
Weight
Options
* Specifications are subject to change without notice.
: 500k ohms
: 10k ohms or less
: 40dB (at 1.5kHz)
: -114dB or less (input shorted IHF-A weighted)
: DRIVE, TONE, LEVEL
: EFECT / True BYPASS
: 9V battery (6F22 or 6LR61) x 1
or Maxon AC adaptor
: manganese dry battery more than 76hours 25deg C / 77deg F
(Panasonic 6F22NB)
: 6mA / 9V 7mA / 10V
: 124(D) x 74(W) x 54(H) mm
: 580g (including battery)
: Maxon AC adaptor (9-10VDC)
7

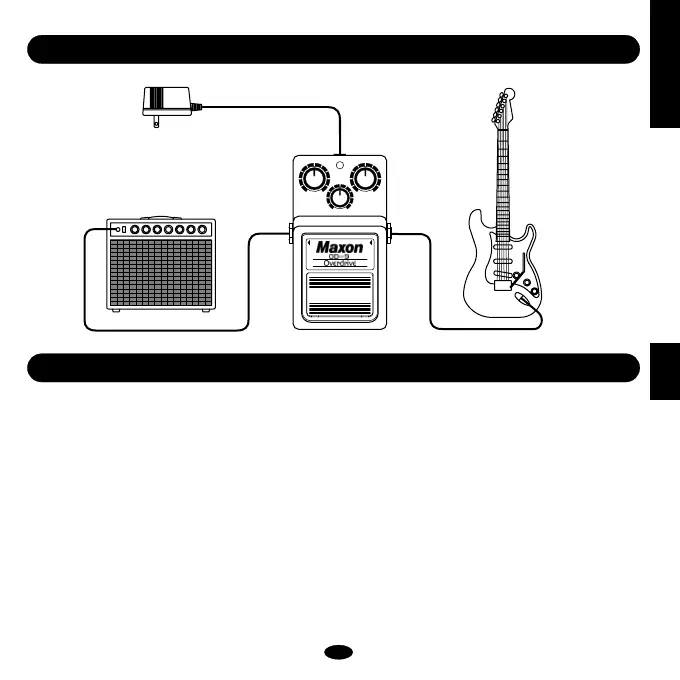

CONNECTION DIAGRAM
SPECIFICATIONS
ENGLISH
OD9

Maxon OD9 Specifications

General

Effect Type	Overdrive
Controls	Drive, Tone, Level
Input Impedance	500 kOhms
Output Impedance	10 kOhms
Weight	580 g
Power Supply	9V DC
Connectors	Input, Output
Bypass	Buffered
Dimensions	124mm (D) x 74mm (W) x 53mm (H)
