Maxon TOD9 User Manual

15
Input Impedance
Output Impedance
Maximum Output Level
Control
Switch
Delay Time
Speed Frequency
Residual Noise
Indicator
Internal Circuit Voltage
Power Consumption
Dimensions
Weight
Power Supply
Battery Life
Options
* All specifications are subject to change for improvement without notice or obligation.
: 500k ohms
: 10k ohms or less
: +9dB (400Hz)
: SPEED, WIDTH
:
PURE, BRIGHT, BYPASS/EFFECT (mechanical TBS)
: 4.6msec - 7.68msec
: 0.33Hz - 8.0Hz
: -95dB or less (IHF-A)
: Bypass/Effect LED
: 9VDC (DC to DC Converter)
: 21mA/9VDC
: 74(W) x 124(D) x 54(H) mm
: 580g (including battery)
:
6F22 9V battery x 1 or Maxon AC adaptor
: manganese battery 8.5 hours 25deg C (Panasonic 6F22NB)
: alkaline battery 20 hours 25deg C (Panasonic 6LR61G)
: Maxon AC adaptor (Refer to page 29.)

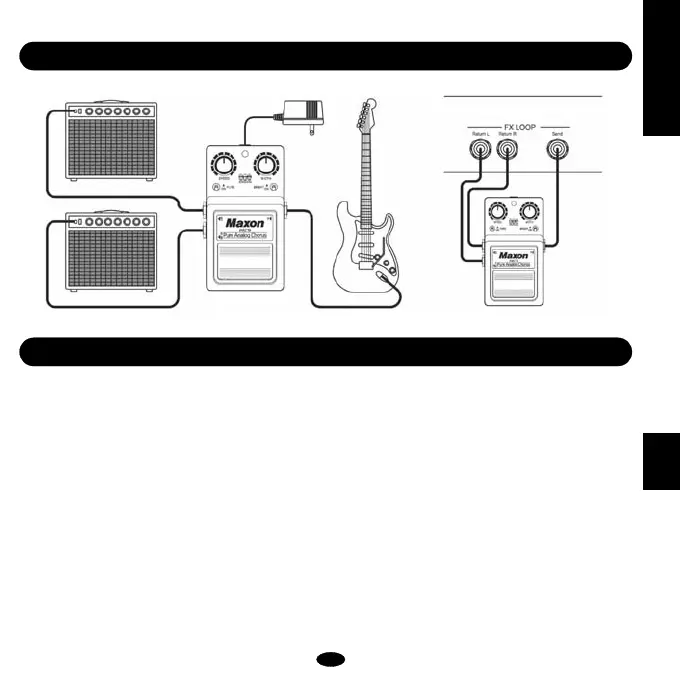

CONNECTION DIAGRAM
SPECIFICATIONS
ENGLISH
PAC9
Guitar Amplifier
PAC9
PAC9
AC adaptor

Maxon TOD9 Specifications
