Maxon TOD9 User Manual

Input Impedance
Output Impedance
Maximum Output Level
Control
Switch
External Foot Switch Jack
Delay Time
Speed Frequency
Residual Noise
Indicator
Internal Circuit Voltage
Power Consumption
Dimensions
Weight
Power Supply
Battery Life
Accessory
Option
* All specifications are subject to change for improvement without notice or obligation.
: 500k ohms
: 10k ohms or less
: +12dBu (400Hz)
: RANGE, JET, SENSITIVITY, SPEED, WIDTH
: Bypass / Effect (mechanical TBS)
: Jet ON / OFF
: 1.0msec to 30.0msec
: 0.04Hz to 12.0Hz
: -90dBu or less (IHF-A)
: Bypass / Effect LED
: 13VDC (DC to DC converter)
: 60mA / 9VDC
: 74 (W)
×124 (D) × 54 (H) mm
: 630g (including battery, excluding AC adaptor)
: 6F22 / 6LR6 9V battery × 1 or Maxon AC adaptor
: manganese battery 50min. 25deg C (Panasonic 6F22NB)
: alkaline battery 3 hours 25deg C (Panasonic 6LR61G)
: AC adaptor AC2009
: AC adaptor (Refer to page 29.)
19

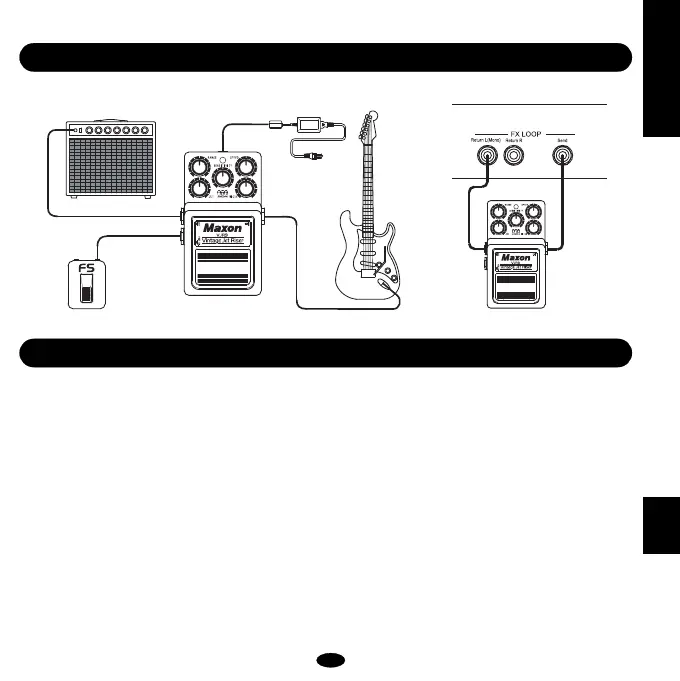

CONNECTION DIAGRAM
SPECIFICATIONS
ENGLISH
AC2009
VJR9
VJR9
Guitar Amplifier
VJR9

Maxon TOD9 Specifications

General

Brand	Maxon
Model	TOD9
Category	Music Pedal
Language	English
