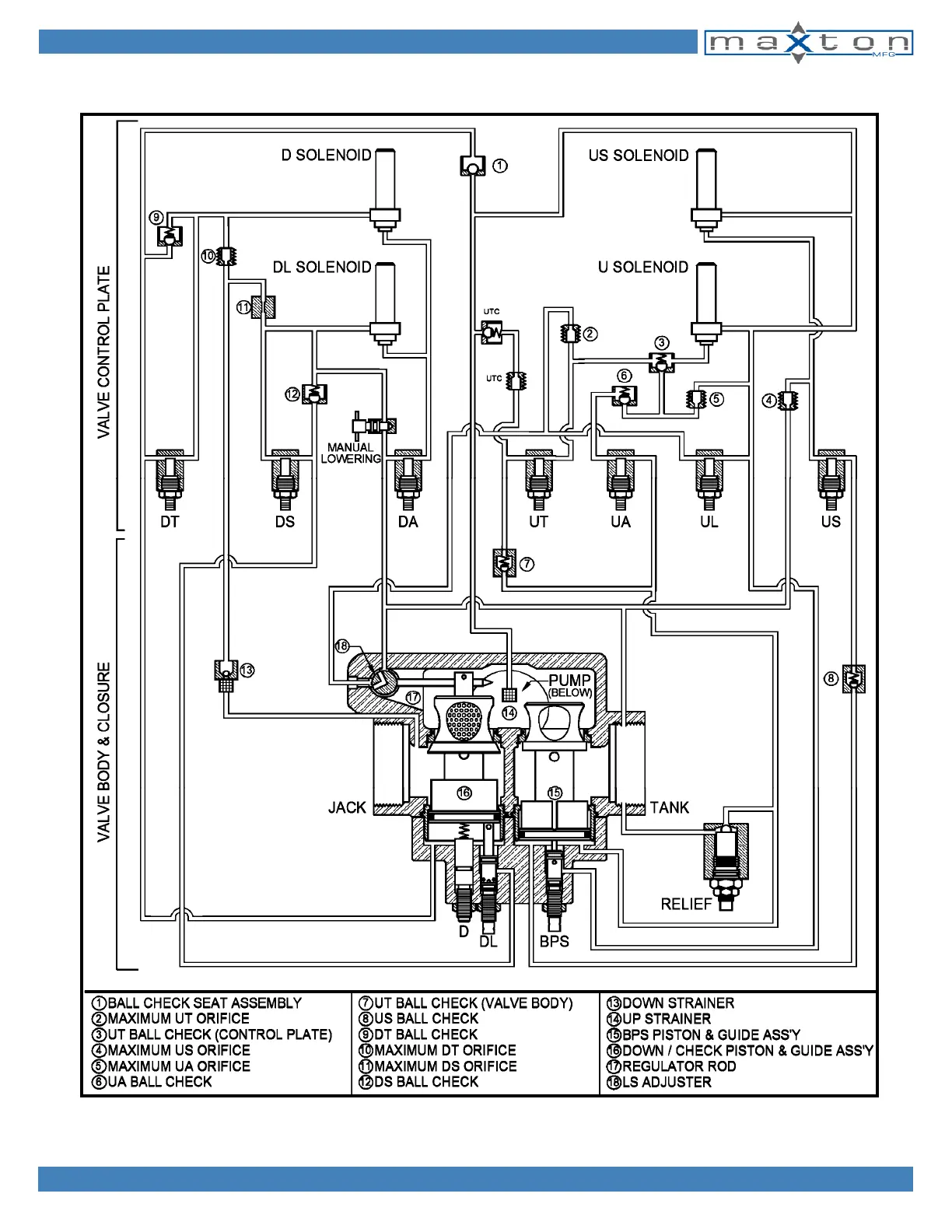

Maxton UC1A - HYDRAULIC SCHEMATIC UC4 M, UC4 B44

1728 Orbit Way - Minden, Nevada 89423 P: 775-782-1700 F: 775-782-1701 info@maxtonvalve.com www.maxtonvalve.com

49
\\SERVER\CATALOG2019\2019CatalogRev2

NOTE: UC4 IS A MIRROR IMAGE OF THE UC4M
HYDRAULIC SCHEMATIC UC4M, UC4 B44
