Maxton UC1A - EMV10 SPECIFICATIONS; MAJOR COMPONENTS & PORT LOCATIONS

1728 Orbit Way - Minden, Nevada 89423 P: 775-782-1700 F: 775-782-1701 info@maxtonvalve.com www.maxtonvalve.com

66
\\SERVER\CATALOG2019\2019CatalogRev2

EMV10
SPECIFICATIONS
USA METRIC
Flow Range
  3 - 12 gpm 11 - 45 lpm
Operating Pressure
Min 150 psi 10 bar
Max 1000 psi 69 bar
Line Ports 3/4” NPT
Gauge Ports “B” 1/8” NPT
Pressure Port “S” 1/8” NPT
Operating Temperature 80 - 150ºF 26 - 65ºC
Oil Type Hydraulic ISO VG 32 150 SUS @ 100ºF
or equivalent biodegradable oil
Electrical Input Provided by Elevator Contractor
Valve Controller Power Supply +24 VDC 3.2A (Regulated)
Pump Disable Circuit +110 VAC
Coil Input Signals +110 VAC
Overall Dimensions:
Width: 5-7/8” 149.2 mm
Height: 8” 203.2 mm
Depth: 8” 203.2 mm
Weight: 14 lbs. 6.4 kg.

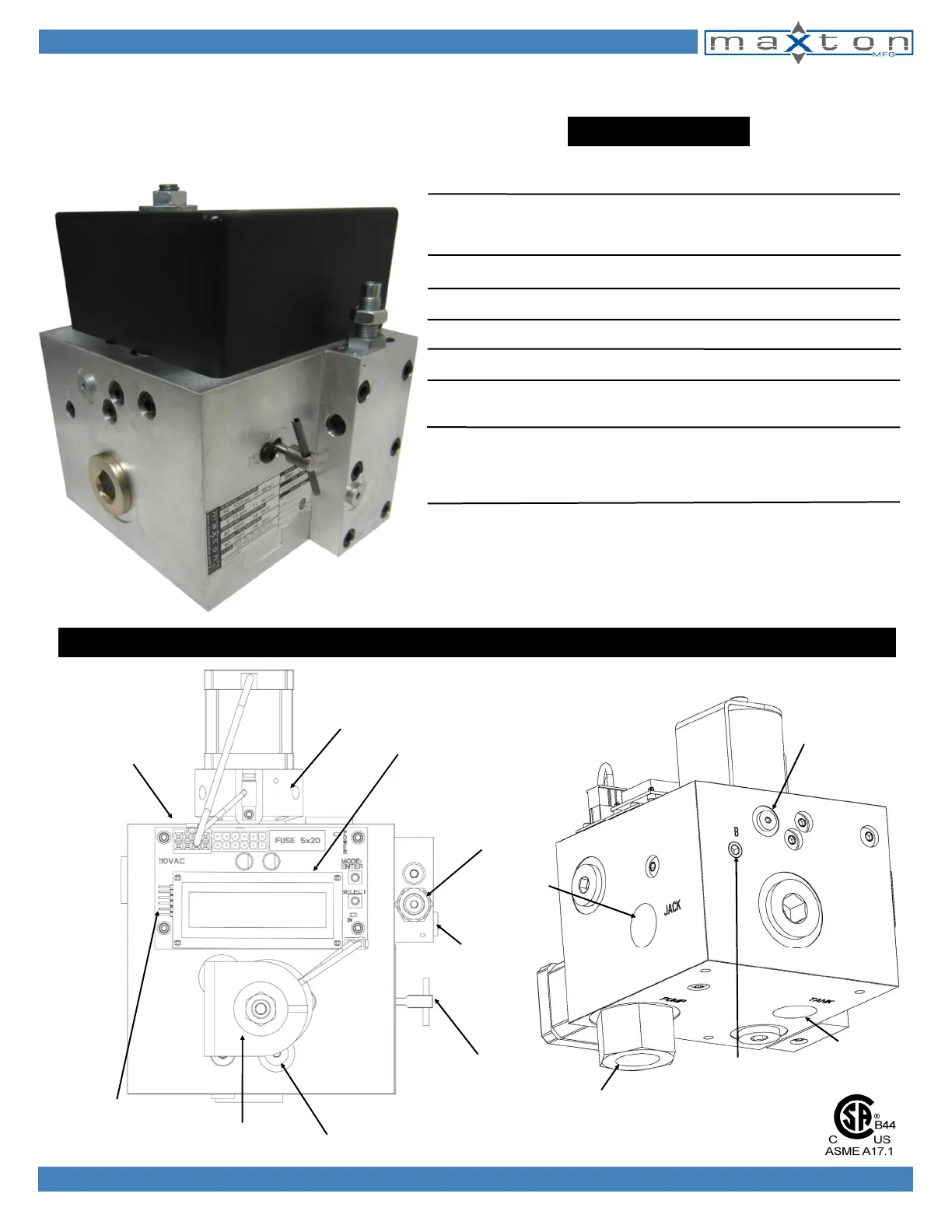

MAJOR COMPONENTS & PORT LOCATIONS
Manual Lowering
Pressure switch port
“S” (on valve body)
Down (DV)
Solenoid & Coil
Compensator
Strainer Access
Check Open
Orifice
Motor Flow Control
(MFC) Assembly
Valve Control Board
(VCB)
Programming Port
Relief Adjuster
PUMP Port
TANK Port
JACK Port
JACK Pressure
Gauge Port “B”
Check Closing Orifice
/Down Strainer
EMV10T SHOWN
