accessories
• Emitter device
• Receiver device
• RJ45 Cable
• RJ11 Cable
• Earphone
• 9 V battery (2pcs)
• Crocodile clamp
• Carrying case
Network wire sequence collation:
1. Insert RJ45 plug at two ends of the network wire
into the corresponding sockets at emitter and
receiver.
2. Set Function switch of emitter to “TEST”, testing
indicator “VERIFY” ashes meaning normal work of
emitter.
3. After some testing, judge the characteristics of
short-circuit, breaking circuit, open circuit and
crossing.
4. During testing, SELECT button can be pressed for
switchover of fast and slow levels.
Open circuit of short circuit testing function:
Set function switch on emitter to position of “TEST”,
and long press SELECT button on emitter for at least
2 seconds, “VERIFY” indicator will change “ash” to
“lighting” insert the plug with crocodile clamp into
RJ11clamp the two ends to be tested with crocodile
clamps, in case of short circuit, the rst led “1” of wire
sequence indicator of emitter will light up, otherwise it
will not light up, resistance of the line can be indicated
be brightness of status indicators: the lighter the
indicator, the smaller the resistance; the darker the
indicator, the bigger the resistance.
Telephone wire nding function:
1. Directly insert telephone wire with RJ11 plug into
the RJ11 or RJ45 socket of the wire tracker’s emitter;
2. Set function switch of emitter to position of
“SCAN” then wire nding indicator “STATUS” ashes
meaning normal work of emitter;
3. Press and hold test button of Receiver, use the
probe of receiver to nd target wire at the other
end;

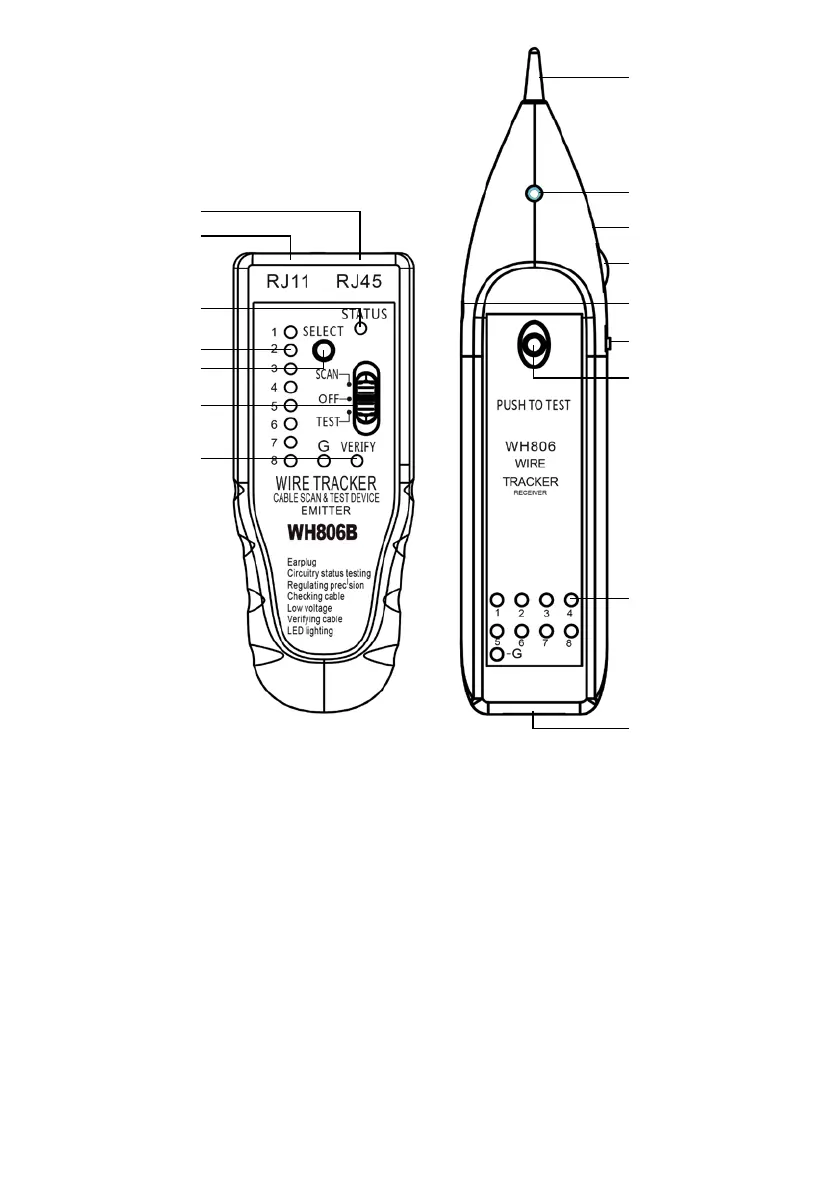

RJ45 Socket
RJ45 Socket
Probe
Signal indicator
Flashlight
Volume adjust
Flashlight switch
RJ11 Socket
Wire nding indicator
Wire sequence indicator
SELECT button
Verify LED
Earphone socket (jack)
Teszt button
Wire sequence indicator
Function switch
