D. Lay out and identify all components,
note that the two front wheels have bee-
n pre-installed. Be aware of the sharp
cotter pin.

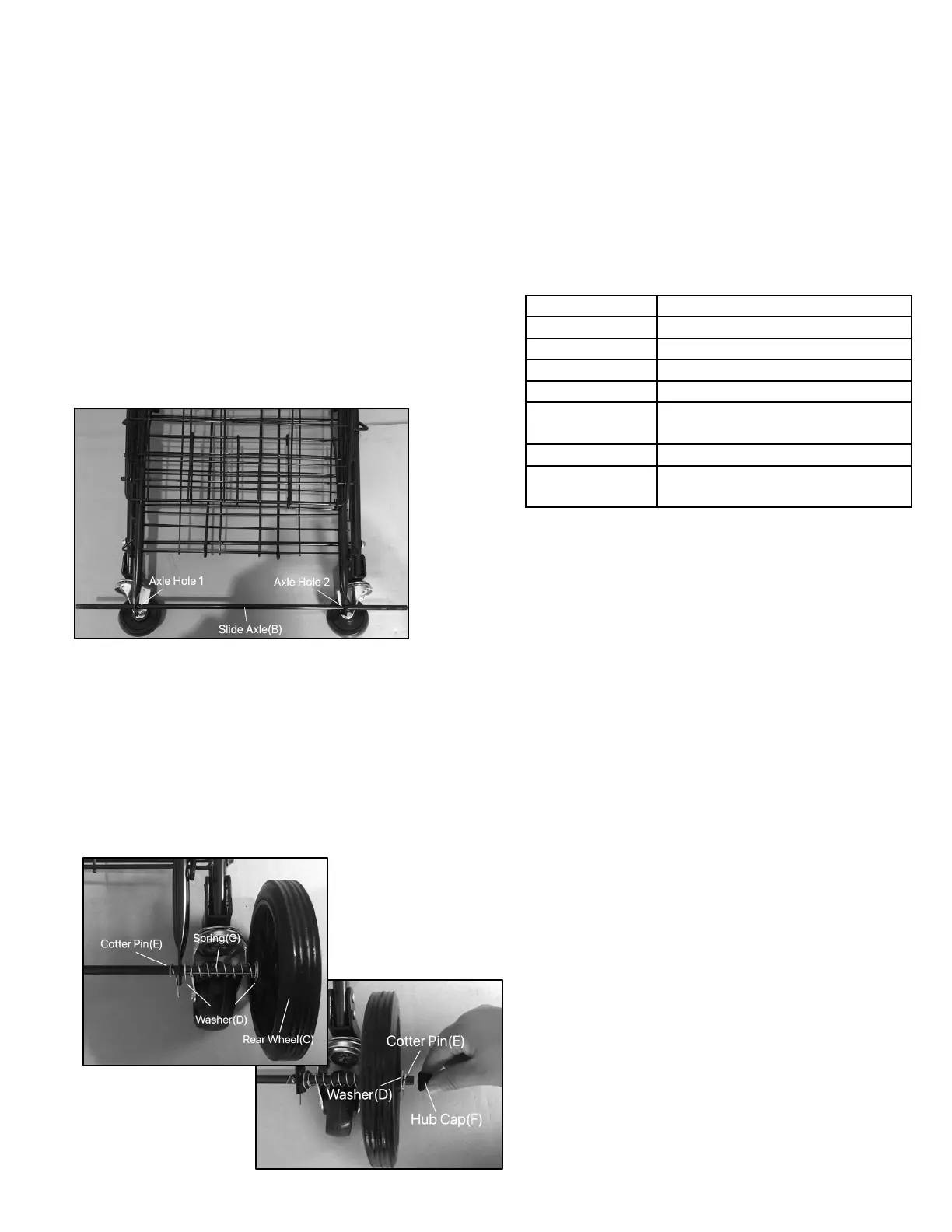

Step 1
Recognize the rear legs of the cart,
slide axle through each hole of the rear
legs. Center the axle and insert the
Cotter Pins(E) into 2 Axle Holes. Bend
the Cotter Pins(E) using pliers to lock
the axle into place.
Step 2
Inserting Washer(D), Spring (G) and
Washer(D) in turn, then attach the Rear
Wheel(C). Insert the Washer(D) and
another Cotter Pin(E), using the Pliers
to bend the Pin again then seal the Hub
with the Cap(F).
Step 3
Repeat Step 2 to assemble the other
rear wheel, then the Assembly is
complete.
SPECIFICATIONS
Please note: The above is manual measurement,
and the dimension error is not more than 0.4”.
Maintaining the Folding Shop-
ping Cart
A. The general condition of this produc
t
should be checked periodically. Make
sure that all hardware is tightened. Make
sure that the Wheels are functioning
properly.
B. Keep the product clean.
Manufactured for and distributed by:
Maxx Group, LLC, Oxnard, CA 93030 USA
www.maxxhaul.com
Steel pipe+Wire+Sponge+Spring
13.8”x6.3”x17.3”
Overall Size(Fully
Extended)
2.76”(diameter)x0.79”(thickness)
5.71”(diameter)x0.87”(thickness)
