Maytag GEMINI Installation Manual

-7-
3-WIRE SERVICE CORD OR CONDUIT INSTALLATION
1. Insure that the copper ground strap IS CONNECTED
between the middle post of the main terminal
connection block and the range chassis.
2. The middle wire of the service cord or ground lead of
3-wire conduit MUST connect to the neutral (middle)
post of the main terminal block. The other two wires of
the service cord or conduit connect to the outside
posts of the main terminal connection block. Polarity is
unimportant.
3. A appropriate strain relief for service cord or conduit
must be attached to the conduit plate.

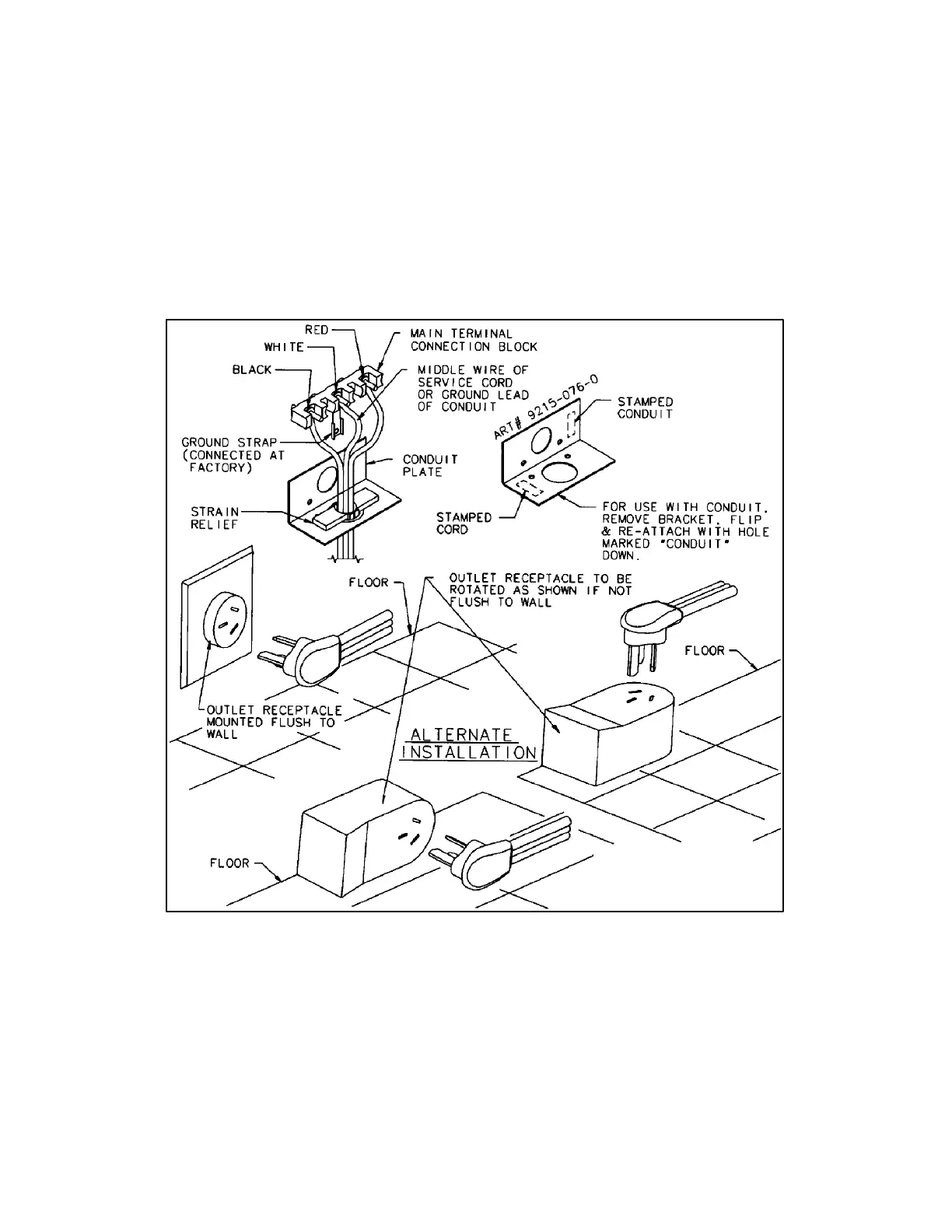

FIGURE 7
ACCEPTABLE 3-WIRE PLUG INSTALLATION

Maytag GEMINI Specifications

General

Type	Freestanding
Brand	Maytag
Category	Ranges
Number of Burners	4
Convection	Yes
Self-Cleaning	Yes
Control Type	Knob
Fuel Type	Electric
Model	GEMINI
Color	White
