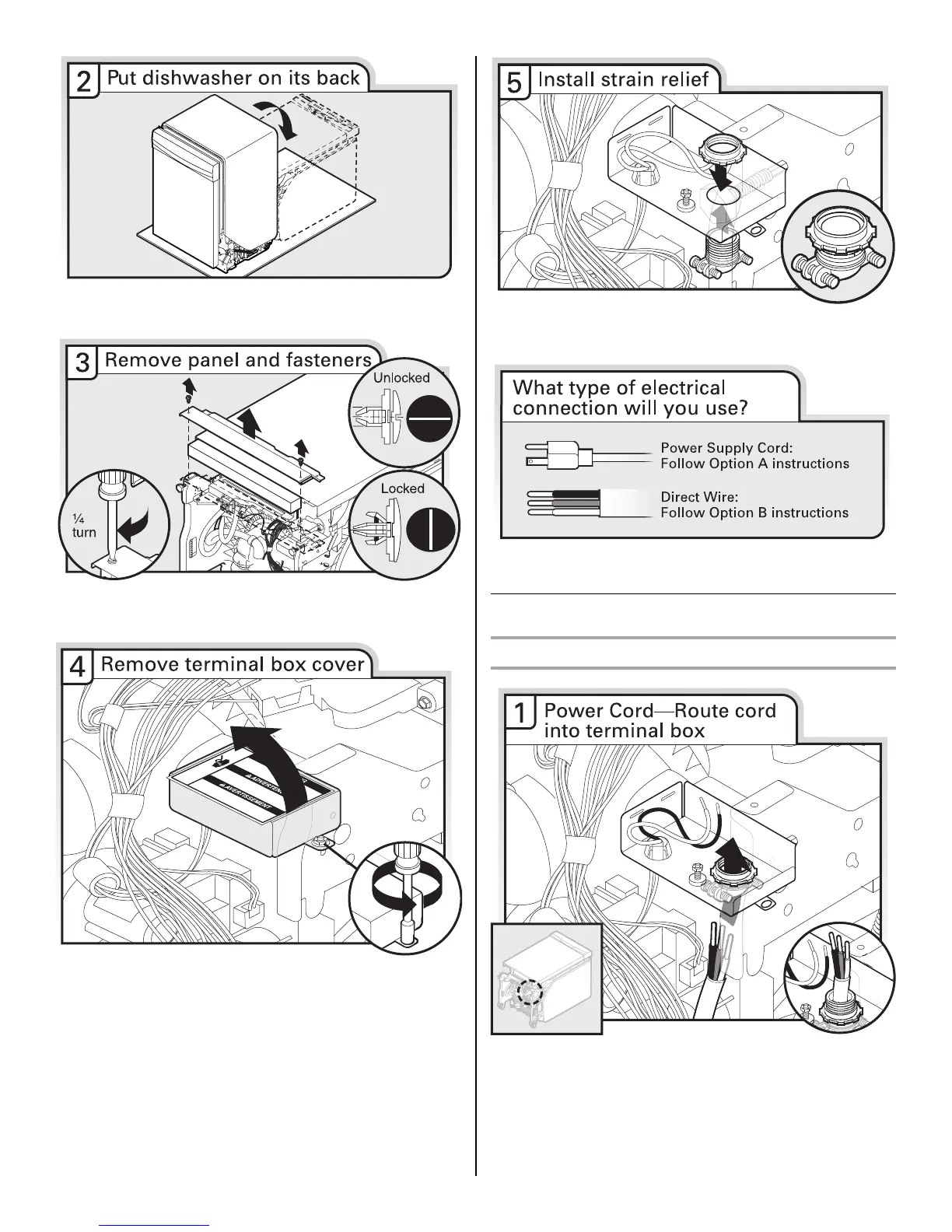

Using 2 or more people, grasp sides of dishwasher door frame
and place dishwasher on its back.
Using a flat-blade screwdriver, turn the plastic fasteners ¹⁄₄ turn to
unlock them. Remove panel. Do not remove tech sheet from
access panel.
Using a ¹⁄₄" hex head socket, nut driver or Torx
®
T20
®
screwdriver,
remove terminal box cover. Retain for later use.
Install a UL Listed/CSA Approved strain relief. Make sure screw
heads are facing to the left when tightening conduit nut. Strain
relief is provided with the power supply cord kit.
NOTE: If using Option B, proceed to “Determine Cabinet
Opening,” to continue with the installation of your dishwasher.
Make Power Supply Cord Connection
Option A, Power Supply Cord:
Route cord so that it does not touch dishwasher motor to lower
part of dishwasher tub. Pull cord through strain relief in terminal
box.
