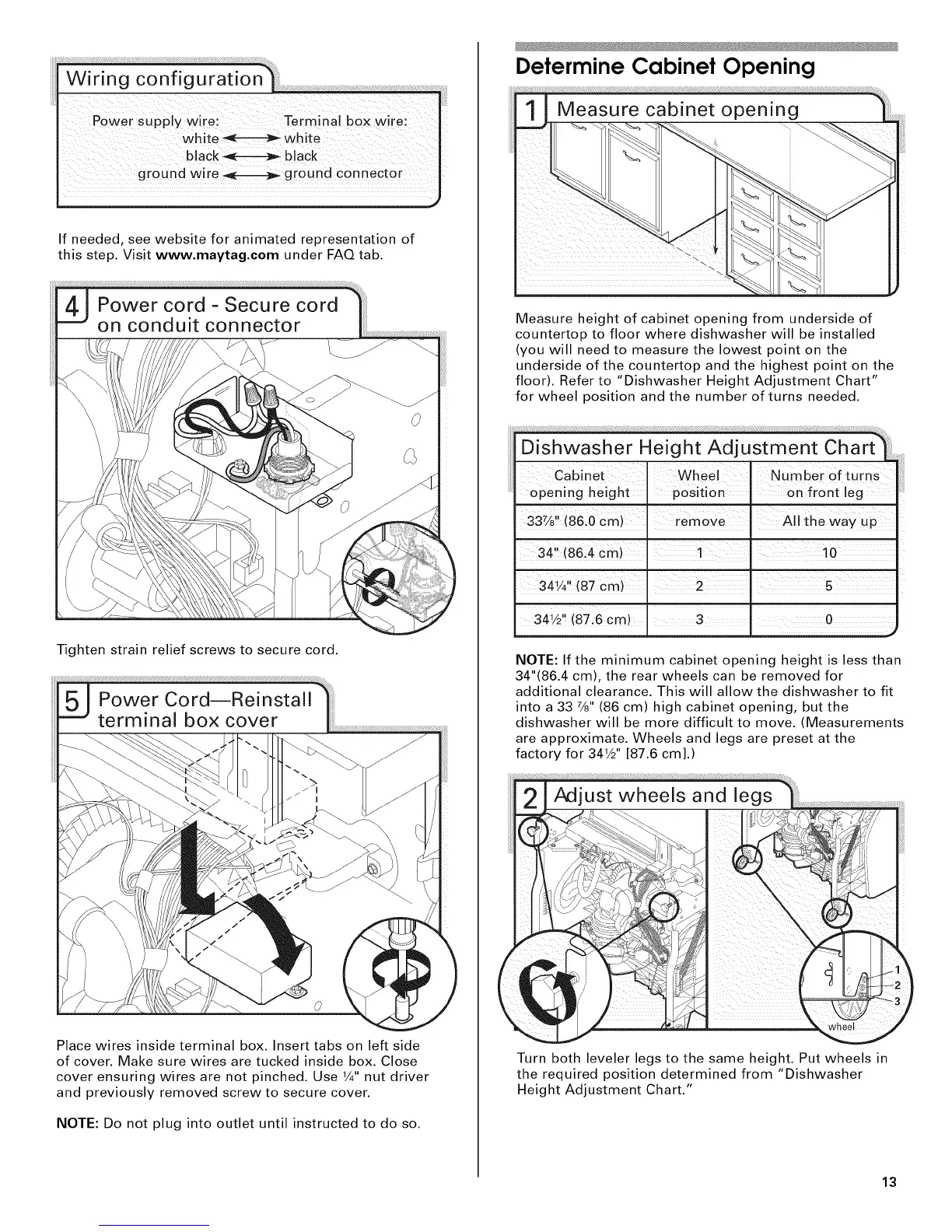

If needed,seewebsiteforanimatedrepresentationof
thisstep.Visitwww.maytag.comunderFAQtab.
Tightenstrainreliefscrewstosecurecord.
Placewiresinsideterminalbox.Inserttabsonleftside
ofcover.Makesurewiresaretuckedinsidebox.Close
coverensuringwiresarenotpinched.Use1/4"nutdriver
andpreviouslyremovedscrewtosecurecover.
NOTE:Donotplugintooutletuntilinstructedtodoso.
Determine Cabinet Opening
Measure height of cabinet opening from underside of
countertop to floor where dishwasher will be installed
(you will need to measure the lowest point on the
underside of the countertop and the highest point on the
floor). Refer to "Dishwasher Height Adjustment Chart"
for wheel position and the number of turns needed.
Cabinet Wheel Number of turns
opening height position' on front leg
I I
337/8'i (86.0 cm)I remo ve A!! the way up
, I
34 (86:4 cm) ! 1 . 10
1
34V4 (87 cm) . 2 ! 5
NOTE: If the minimum cabinet opening height is less than
34"(86.4 cm), the rear wheels can be removed for
additional clearance. This will allow the dishwasher to fit
into a 33 7/8"(86 cm) high cabinet opening, but the
dishwasher will be more difficult to move. (Measurements
are approximate. Wheels and legs are preset at the
factory for 341/2'' [87.6 cm].)
wheel
Turn both leveler legs to the same height. Put wheels in
the required position determined from "Dishwasher
Height Adjustment Chart."
)
13
