Maytag MFF2055YEB00 - Page 7

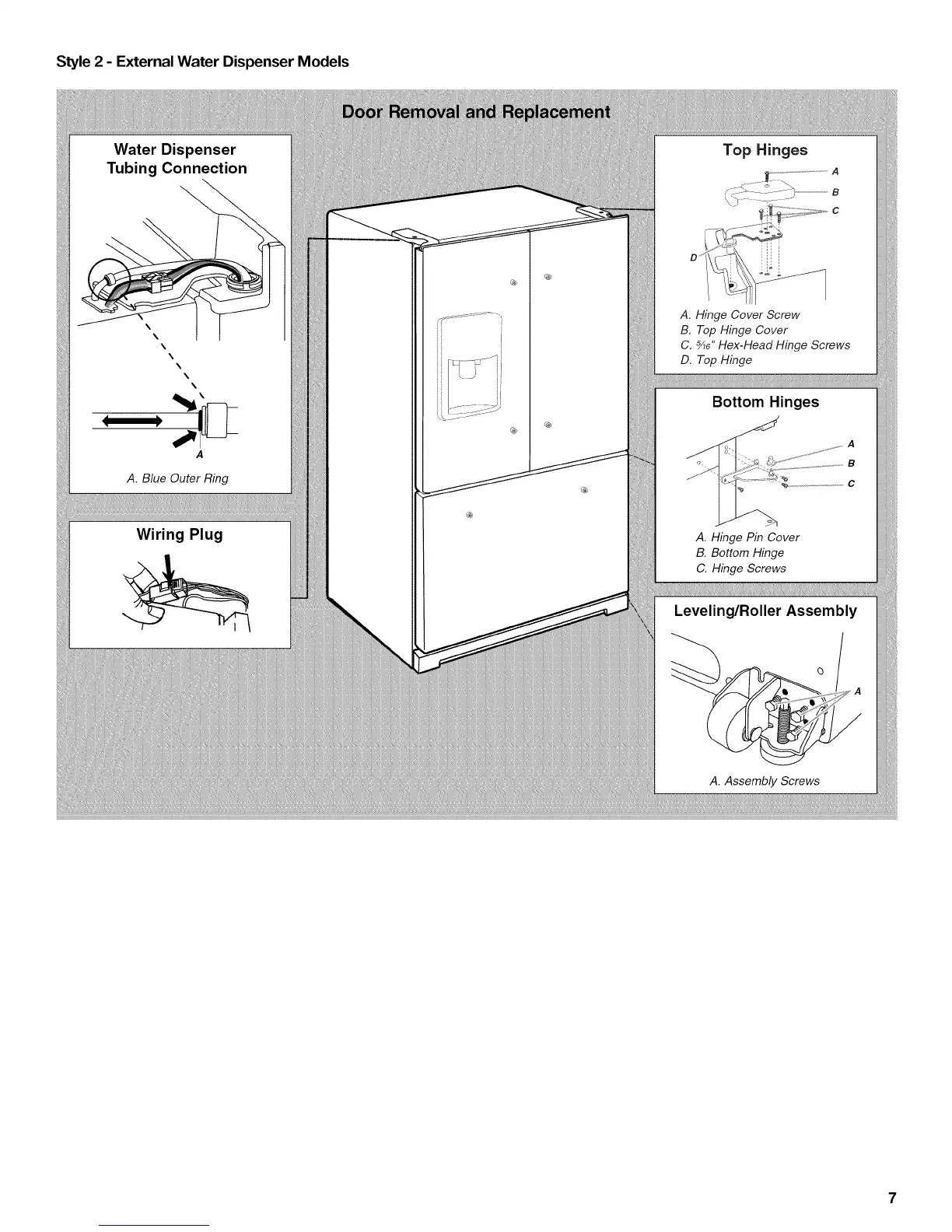

Style 2 - External Water Dispenser Models
Water Dispenser
Tubing Connection
\
\
\
\
\
\
\
\
A
A. Blue Outer Ring
Wiring Plug
Top Hinges
A. Hinge Cover Screw
B, Top Hinge Cover
C, _6" Hex-Head Hinge Screws
D. Top Hinge
Bottom Hinges
A
B
A. Hinge Pin Cover
B. Bottom Hinge
C. Hinge Screws
Leveling/Roller Assembly
A. Assembly Screws
