Maytag MFX2571XEB3 - Page 7

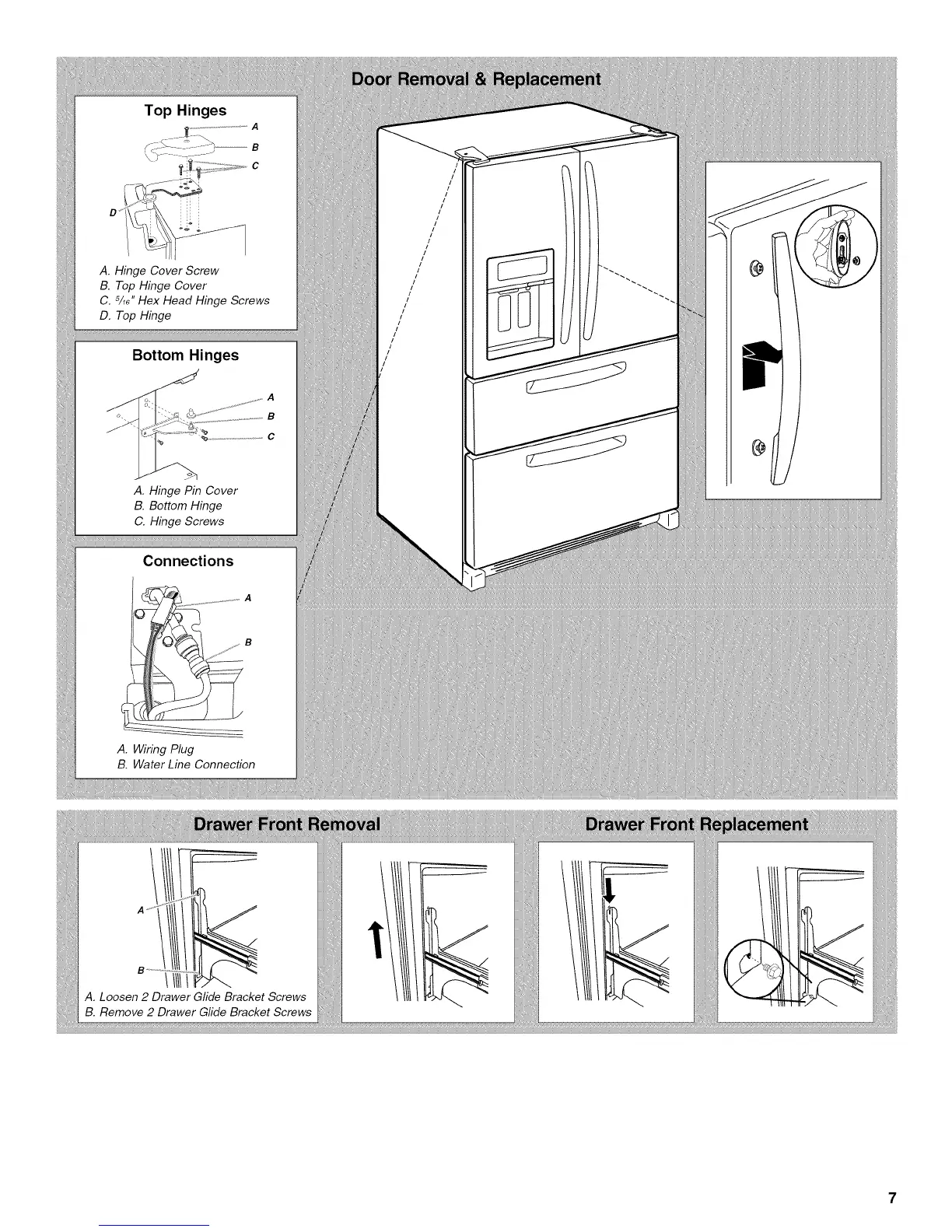

Top Hinges
F_.................... B
O y'!
A. Hinge Cover Screw
B. Top Hinge Cover
C. 5/16"Hex Head Hinge Screws
D. Top Hinge
Bottom Hinges
A. Hinge Pin Cover
B. Bottom Hinge
C. Hinge Screws
Connections
//
iI
i
iI
iI
ii
ii
i I
iI
iI
ii
i
ii
i I
/
I
A. Wiring Plug
B. WaterL_e Connection
B •
A. Loosen 2 Drawer Glide Bracket Screws
B. Remove 2 Drawer Glide Bracket Screws
