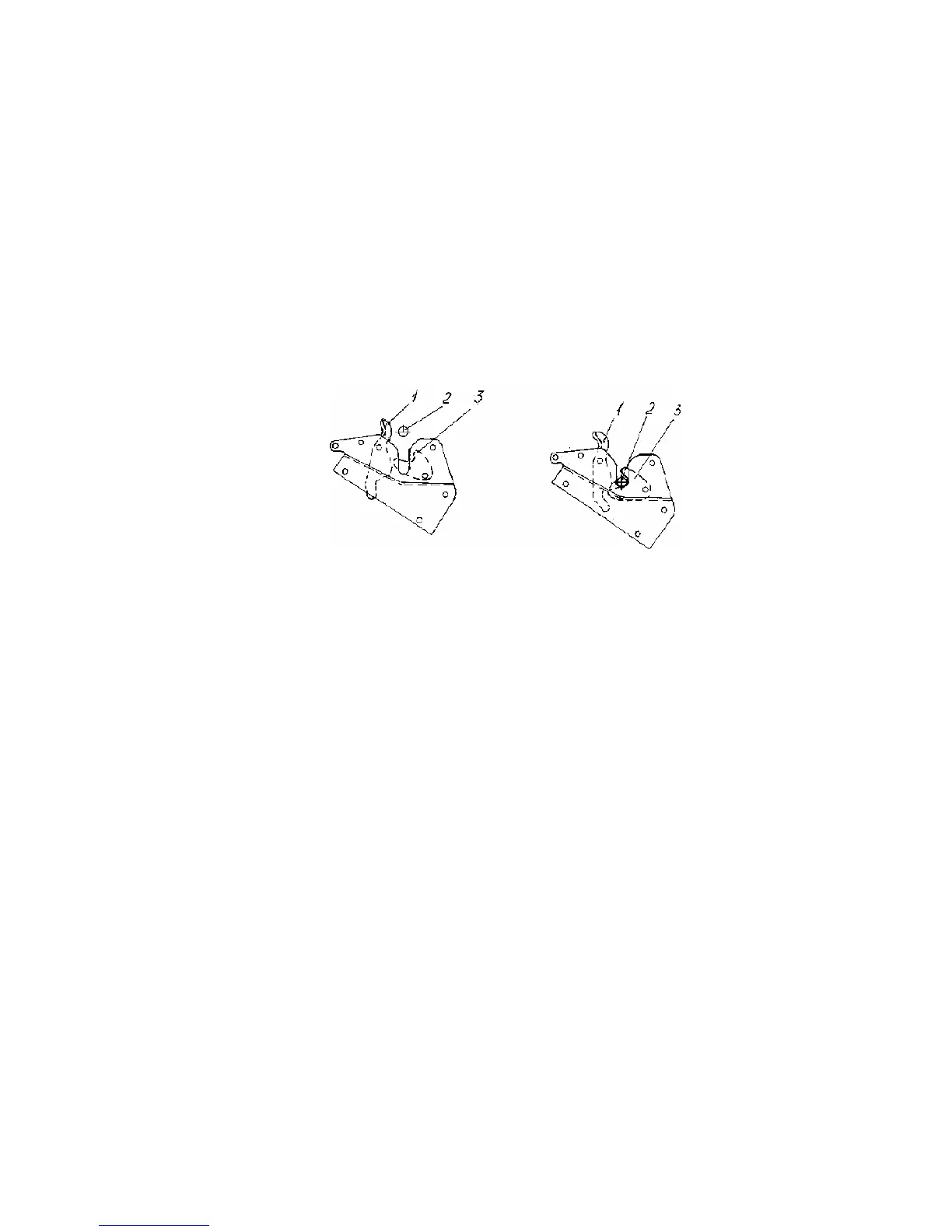

1 –cam; 2 – axle; 3 – catch
I – cabin catch gear in the position “Open”
II – cabin catch gear in the position “Closed”
Fig. 18 – Cabin catch gear
Automobile coupling and uncoupling with trailer
For car coupling with trailer it is necessary to:
– fix the trailer with the hand brake;
– bring the automobile to the trailer; make sure that the handle 18 (Fig. 19) of the trailer coupling is lifted up and do the coupling. When the
coupling is finished the handle should be in the level position and the safety device 29 in the position “Pressed”;
– connect the trailer pneumatic and electrical system to the automobile systems;
– open the angle cocks on the automobile and trailer, providing air delivery from the automobile pneumatic system to the trailer air tanks;
– check the work of the brakes and the trailer signaling.
To uncouple the automobile and the trailer it is necessary to stretch the safety device, while holding it raise the handle as far as it would go (the
handle should be fixed in this position)
