Интерфейсный электронный блок (VECU)
XT637
"Масса"
Жгут системы EDC
45
1
2 3

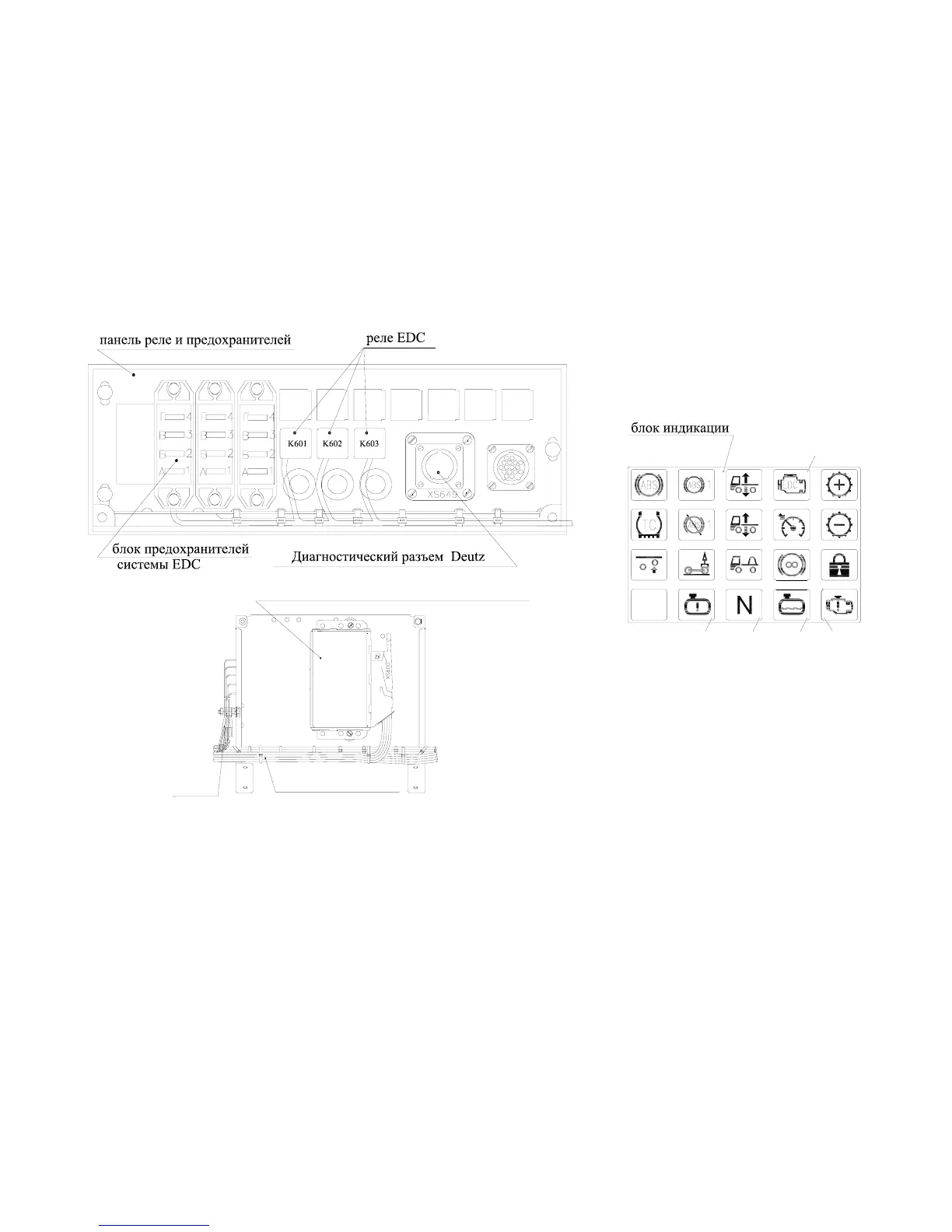

1- EDC control lamp (red); 2 – control lamp of faults in the SCR system (yellow),
3 - neutral lamp КПП (green); 4 – control lamp of a slow level of the ammoniac
solution in the SCR system (green), 5 – ЕDC control lamp (yellow)
