qFuse Panel Description

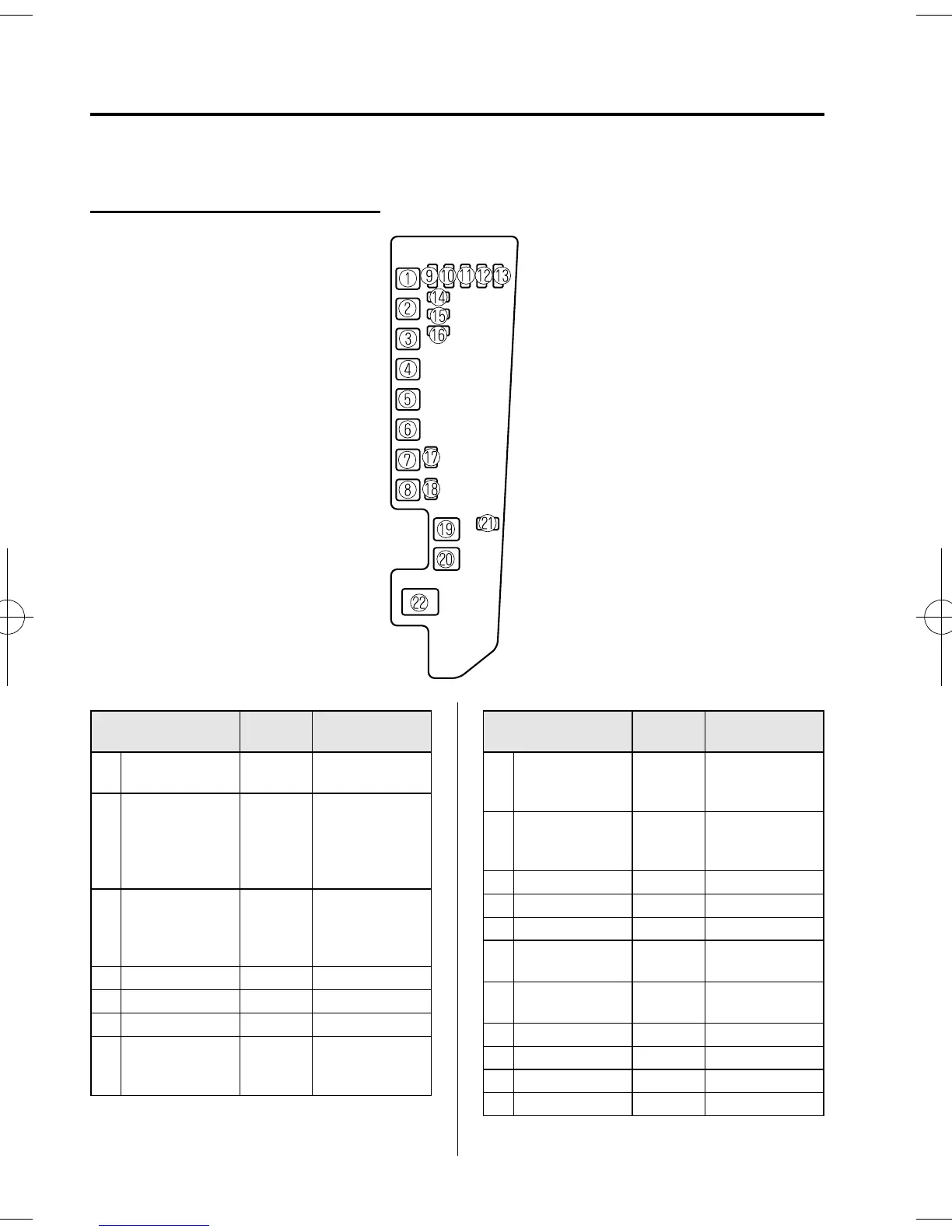

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1 DEFOG 40A
Rear window
defroster
2 BTN 60A
STOP,
HAZARD,
ROOM,
D.LOCK and
DRL fuses
3 ABS 60A
Antilock brake
system
í
, For
protection of
various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEAT 30A
Rear heater
í
,
For protection of
various circuits
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
8 IG KEY2 40A
A/C, P.WIND
í
,
MOONROOF
í
and R.WIP fuses
9 A/C 10A
Air conditioner,
For protection of
various circuits
10 TAIL 15A Taillights
11 AC PWR 15A Inverter
12 HORN 15A Horn
13 FOG 15A
For protection of
various circuits
14 EEC 5A
For protection of
various circuits
15 HEAD L 15A Headlight-left
16 HEAD R 15A Headlight-right
17 HID L 20A ―
18 HID R 20A ―
8-40
Maintenance and Care
í
Some models.
