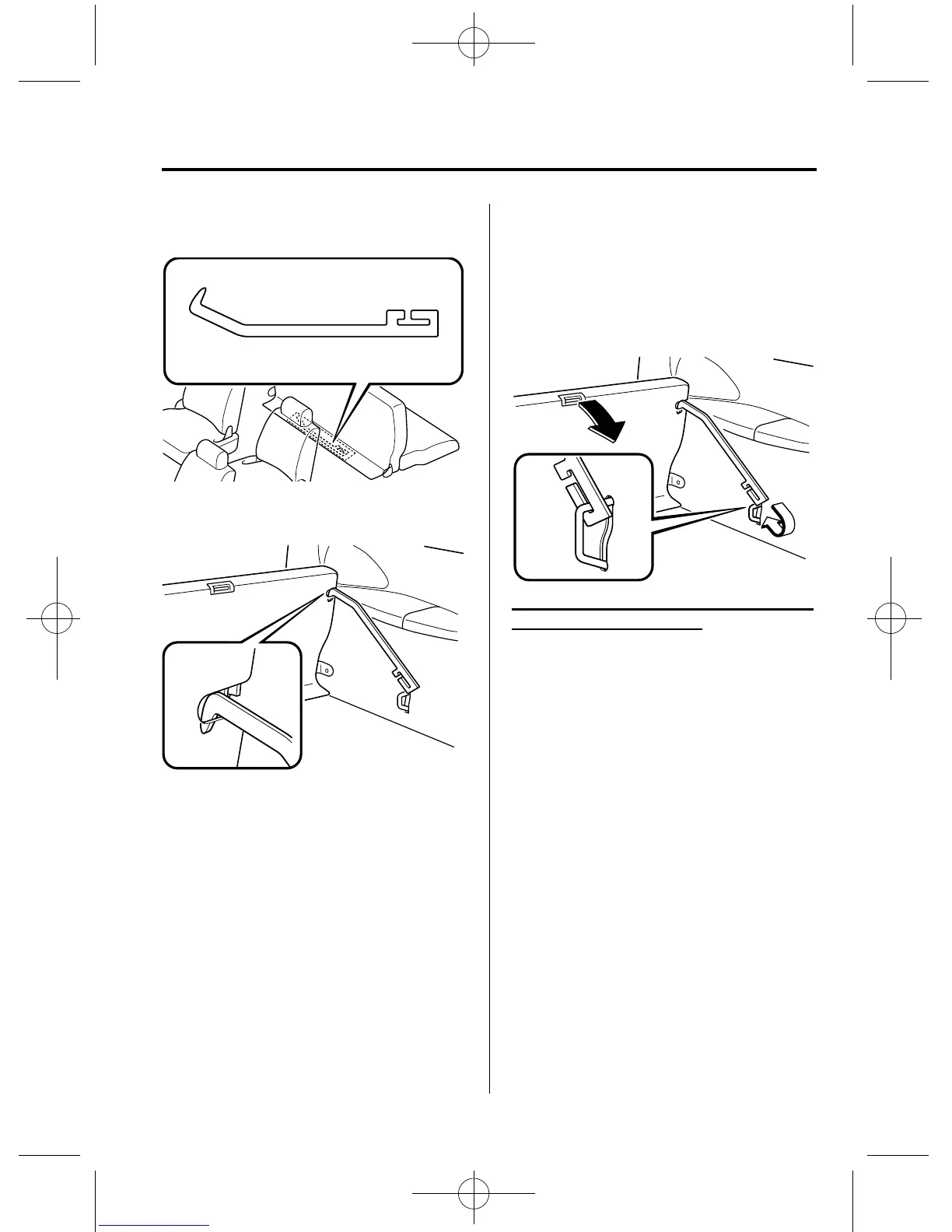

7. Remove the support bar from the
pocket.
8. Set the hook on the support bar in the
rear of the seatback.
9. Pull the seatback towards the front of
the vehicle until the opposite end of the
support bar hooks onto the anchor loop
in the side trim. Attempt to push the
seatback towards the rear (liftgate) to
make sure the support bar is securely
latched.
To return the third-row seat to the road
position (forward facing)
1. Make sure to stow the shoulder belts
away from the seat bottom as it is
lowered.
2. Detach the support bar by following
the reverse procedure for installation.
Essential Safety Equipment
Seats
2-27
