Black plate (296,1)

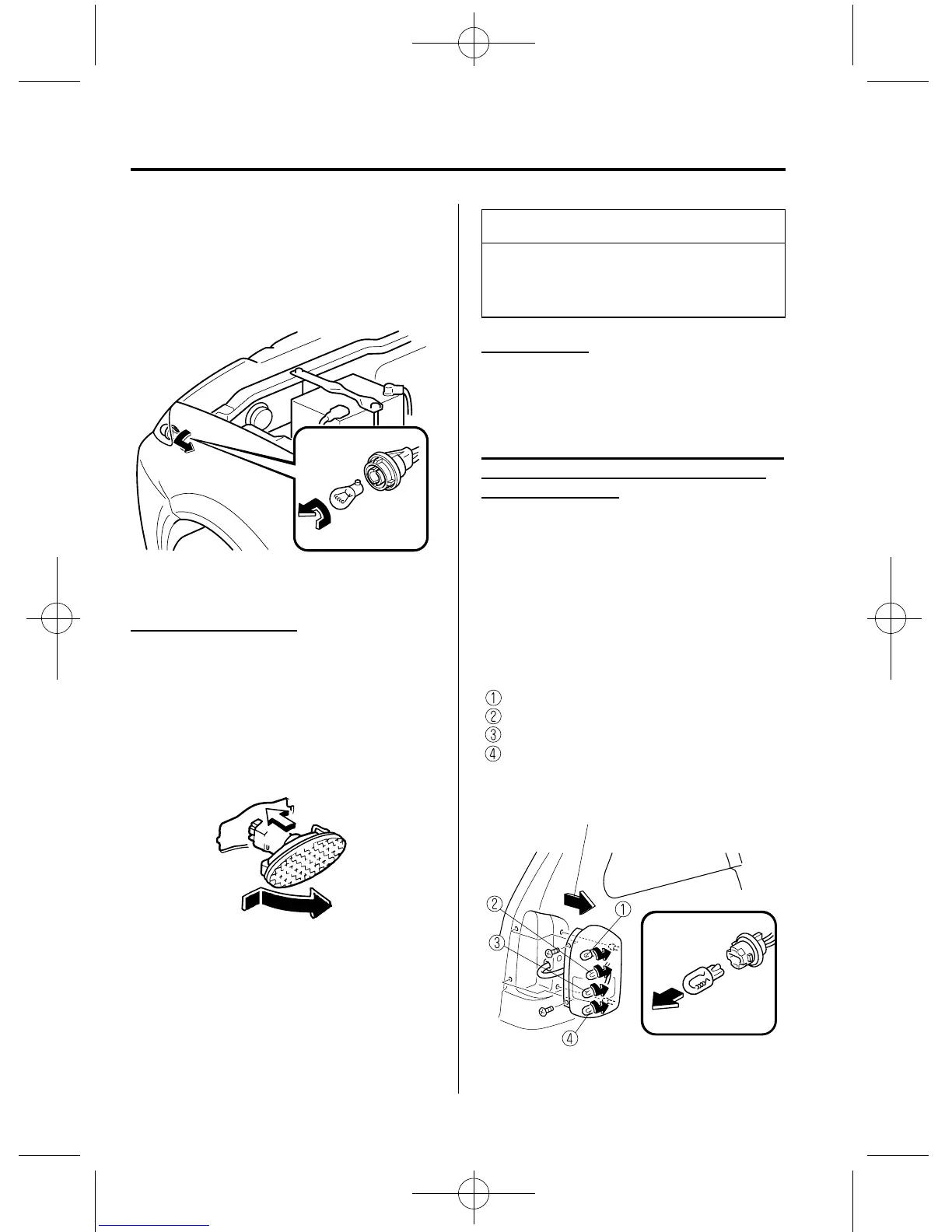

3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
5. Install the new bulb in the reverse order
of removal.
Side turn signal lights
1. Slide the unit as shown in the figure to
remove it.
2. Detach the electrical connector from
the unit by pulling it to the rear.
3. Install the new side turn signal unit in
the reverse order of removal.
NOTE
Bulb replacement is not possible
because it is built into the unit. Replace
the unit.
Parking lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Brake lights/Taillights, Rear turn signal
lights, Reverse lights, Taillights/Rear-
side marker lights
1. Remove the bolts with a Phillips
screwdriver and remove the rear
combination component.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Taillights/Rear side-marker lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights
Pull outward
8-36
Maintenance and Care
Owner Maintenance
Mazda MPV_8U61-EA-05G_Edition1 Page296
Tuesday, June 21 2005 9:38 AM
Form No.8U61-EA-05G
