qFront Air Bag System Components
(8)
(5)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
(9)
(10)

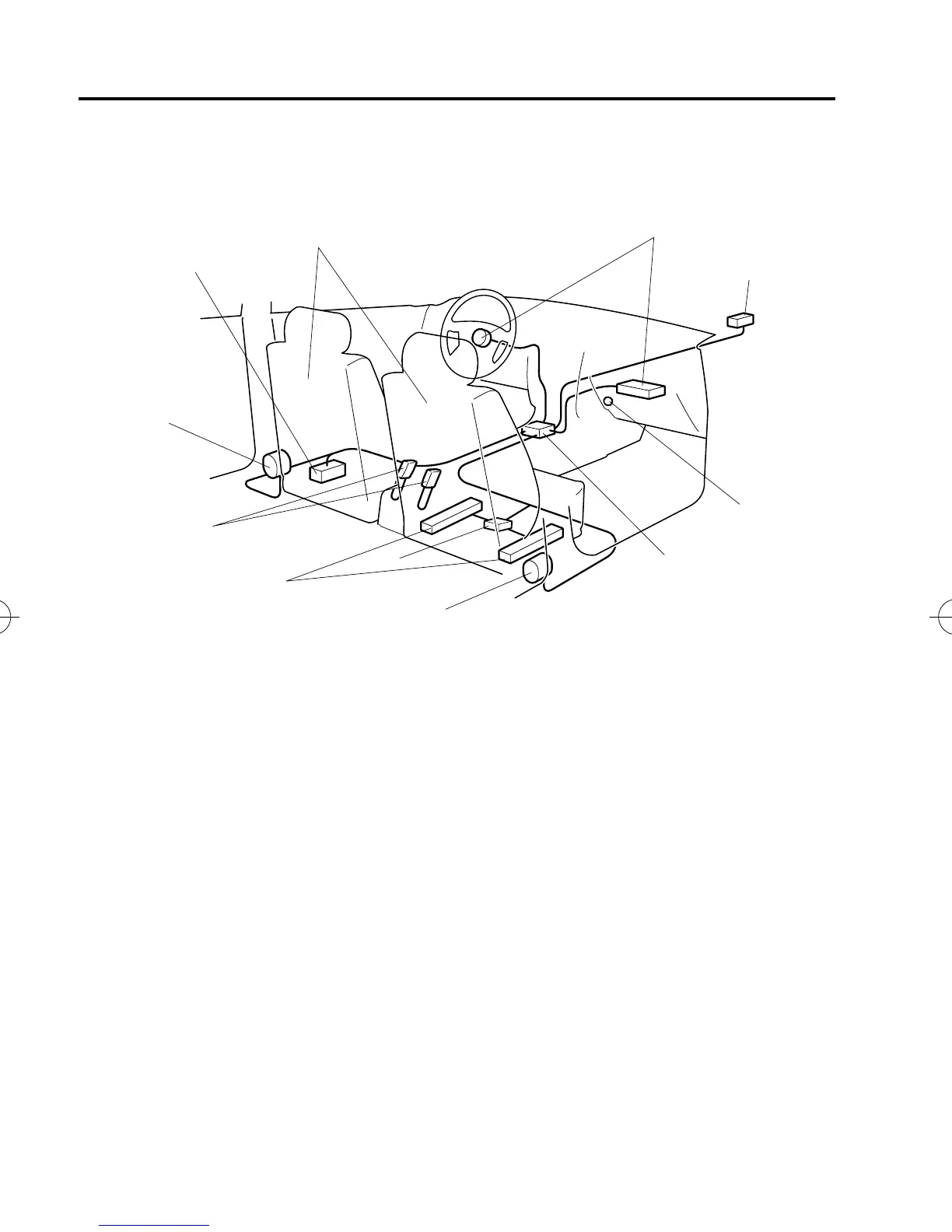

(1) Front dual stage inflators and air bags
(2) Front air bag sensor
(3) Front passenger air bag deactivati on indicator light (page 2-46)
(4) Crash sensors and diagnostic module (SAS unit)
(5) Front seat belt pretensioner and load limiting systems (page 2-20)
(6) Front passenger seat weight sensors (page 2-46)
(7) Front passenger seat weight sensor control module
(8) Driver and front passenger seat belt buckle switches (page 2-46)
(9) Driver seat slide position sensor (page 2-46)
(10) Front seats
