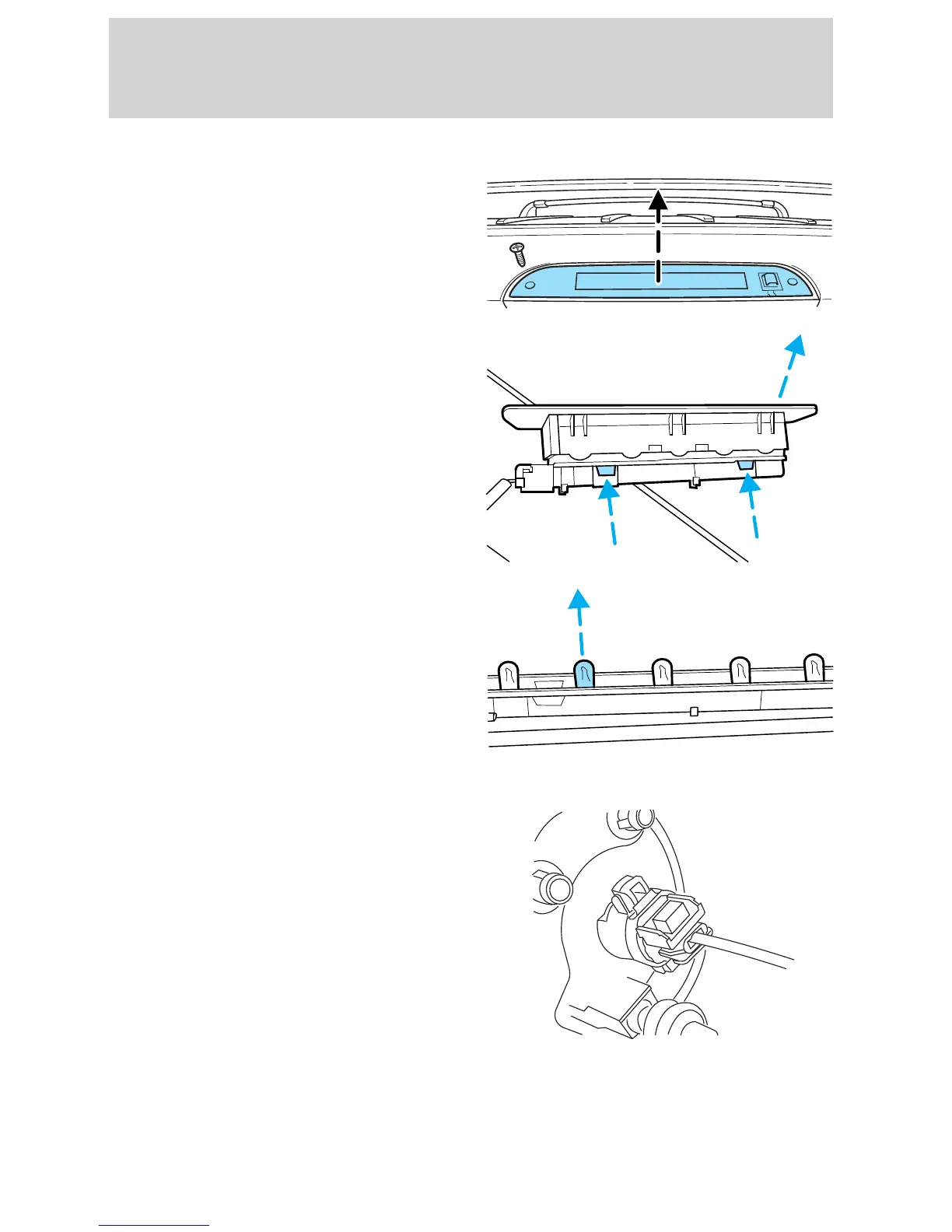

Replacing high-mount brake lamp bulbs
To remove the lamp assembly:
1. Remove the two screws and
move the lamp assembly away
from the liftgate.
2. Remove the bulb holder from
the lamp assembly by
depressing the snaps.
3. Pull the bulb straight out of the
socket and push in the new
bulb.
To complete installation, follow the
removal procedure in reverse order.
Replacing fog lamp bulbs (if equipped)
1. Make sure the fog lamp switch
is in the off position.
2. From underneath the vehicle,
carefully disconnect the
electrical connector from the
bulb.
3. Remove the bulb from the lamp
assembly by pulling out on the
bulb while squeezing on the
upper and lower snap clips at
the same time.
Install the new bulb in reverse order.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Lights
48
