qFuse Panel Description

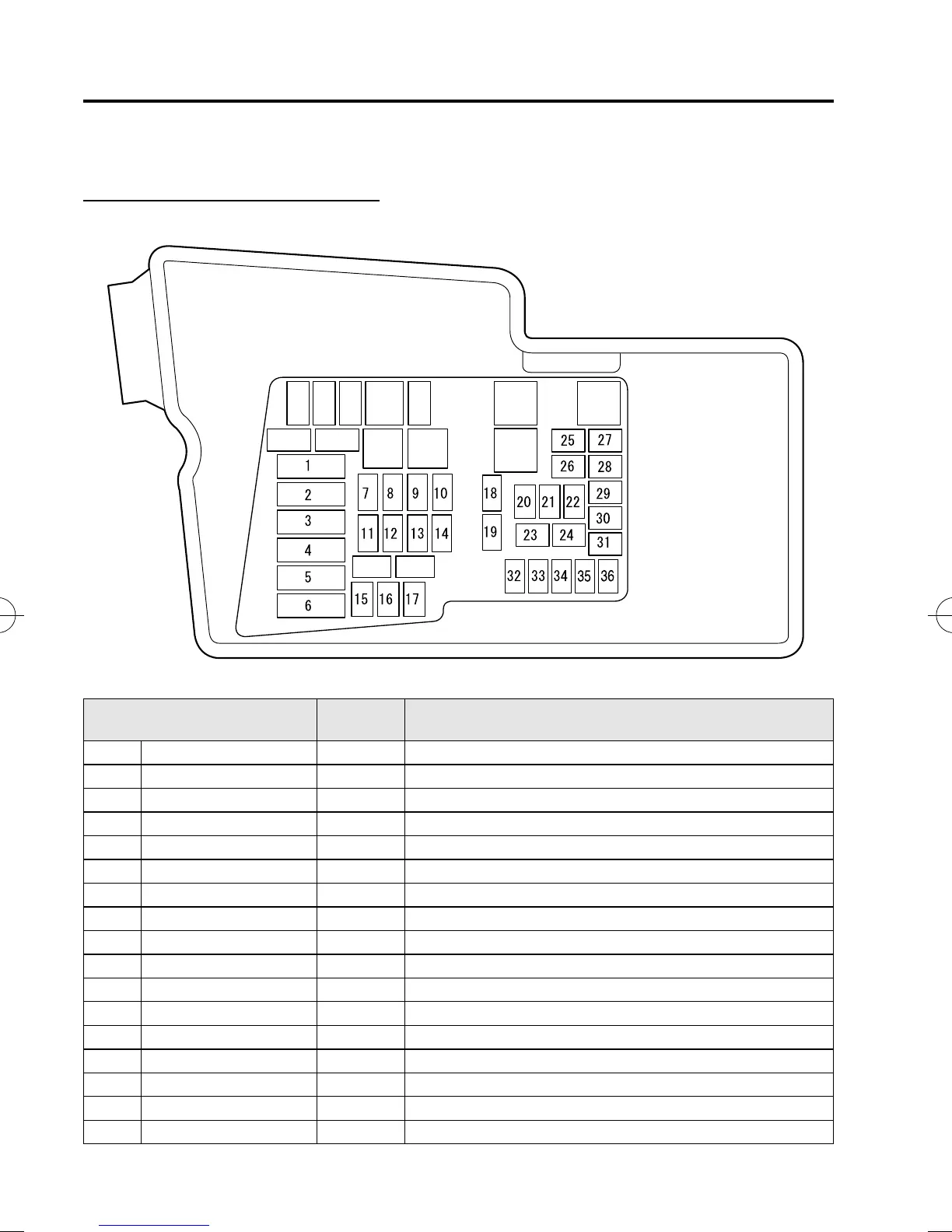

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 PCS ――
2 BLOWER 40 A Air conditioner
3 FUEL PUMP 30 A Fuel pump
4 FAN 2 40 A Cooling fan
5 IG KEY 1 40 A For protection of various circuits
6 FAN 1 40 A Cooling fan
7 P.SEAT (D) 30 A Power seat
í
8 INJ 1 30 A Engine control system
í
9 P.SEAT (P) 30 A Power seat
í
10 BOSE 30 A Bose
®
audio system
í
11 ENGINE 30 A Engine control system
12 D.LOCK 20 A Power door locks
13 P.WIND 30 A Power windows
14 IG KEY 2 40 A For protection of various circuits
15 ABS 1 40 A ABS
16 ABS 2 20 A ABS
17 DSC ――
8-52
Maintenance and Care
í
Some models.
