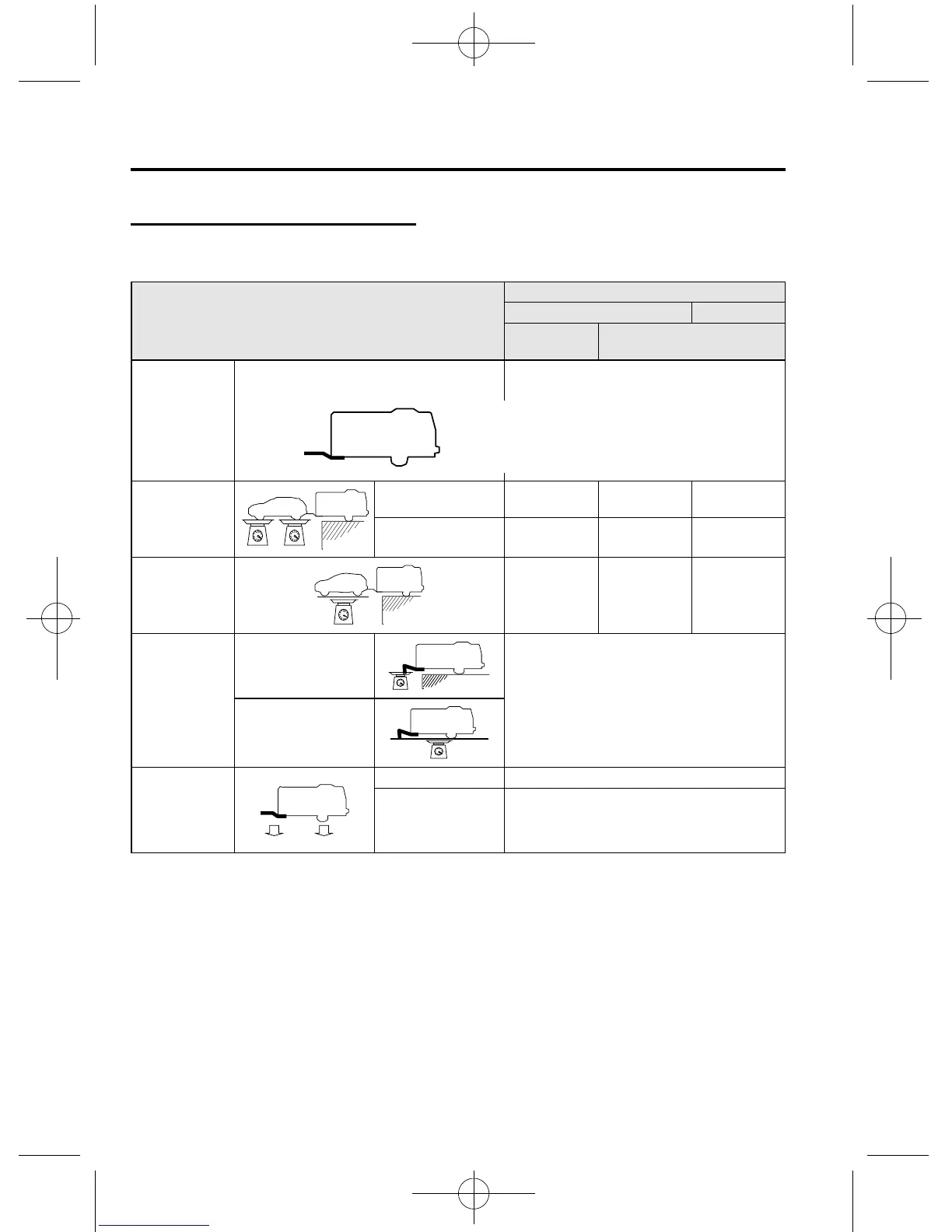

TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
Item
Model
2WD AWD
Manual
transaxle
Automatic transaxle
MAX. TTW
Add trailer's weight, load and hitch; vehicle
passengers and vehicle load
*1
907 kg (2,000 lb)
MAX. GAWR
Front
964 kg
(2,125 lb)
1,000 kg
(2,205 lb)
1,016 kg
(2,240 lb)
Rear
966 kg
(2,130 lb)
964 kg
(2,125 lb)
1,011 kg
(2,229 lb)
MAX. GVWR
1,927 kg
(4,248 lb)
1,961 kg
(4,323 lb)
2,024 kg
(4,462 lb)
TRAILER-
TONGUE
LOAD
Tongue load
Tongue load/Trailer load × 100 = 10 % to 15 %
Trailer load
DISTRIBU-
TION OF
TRAILER
LOAD
Front 60 %
Rear 40 %
*1 i.e. baggage, food, camp gear
GAWR: Gross Axle Weight Rating
GVWR: Gross Vehicle Weight Rating
