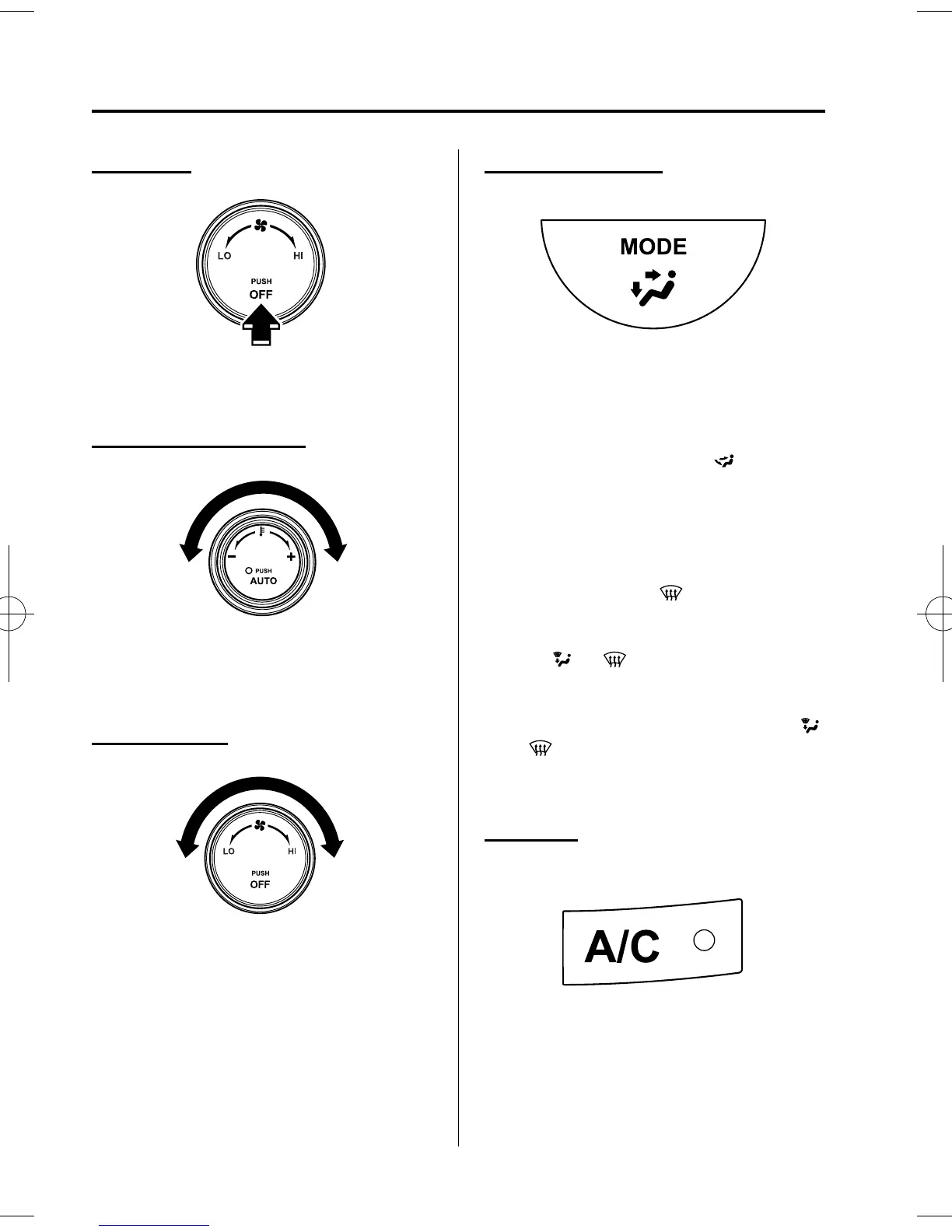

OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Slow
Fast
The fan has seven speeds. The selec ted
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
l
With the airflow mode set to position
and the temperature control dial set at a
medium temperature, heated air is directed
to the feet and a comparably lower air
temperature will flow through the central,
left and right vents.
l
To set the air vent to , press the
windshield defroster switch.
l
(U.S.A., Canada)
In the
or position, the air
conditioner is automatically turned on and
the outside air mode is automatically
selected to defrost the windshield. In the
or position, the outside air mode
cannot be changed to the recirculated air
mode.
A/C switch
6-6
Interior Comfort
Climate Control System
