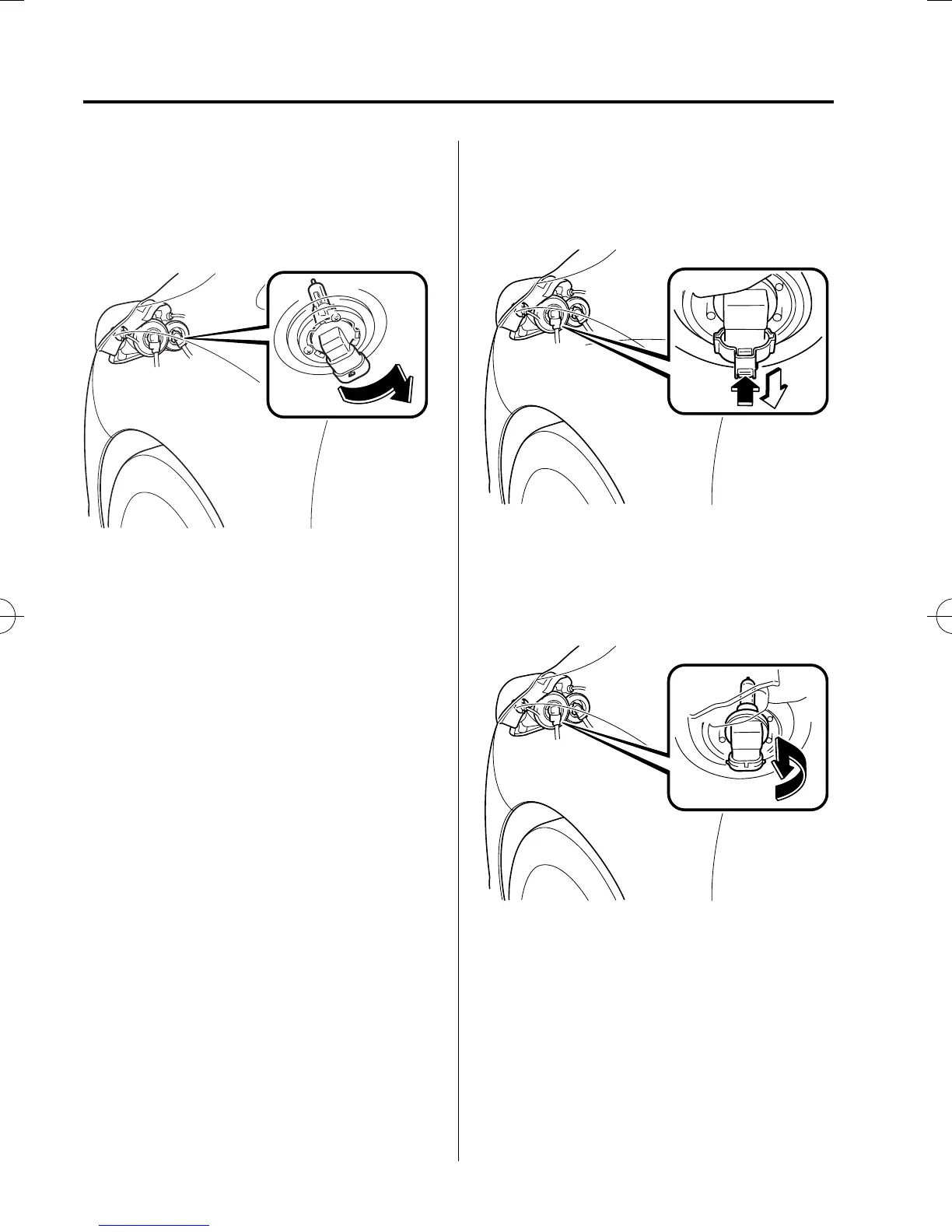

5. Turn the bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
NOTE
l
To replace the bulb, contact an Authorized
Mazda Dealer
l
If the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
l
Use the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Low-beam bulbs
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself. The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulb)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finge r and
pulling the connector.
4. Turn the bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
5. Install the new bulb in the reverse order
of the removal procedure.
8-36
Maintenance and Care
Owner Maintenance
