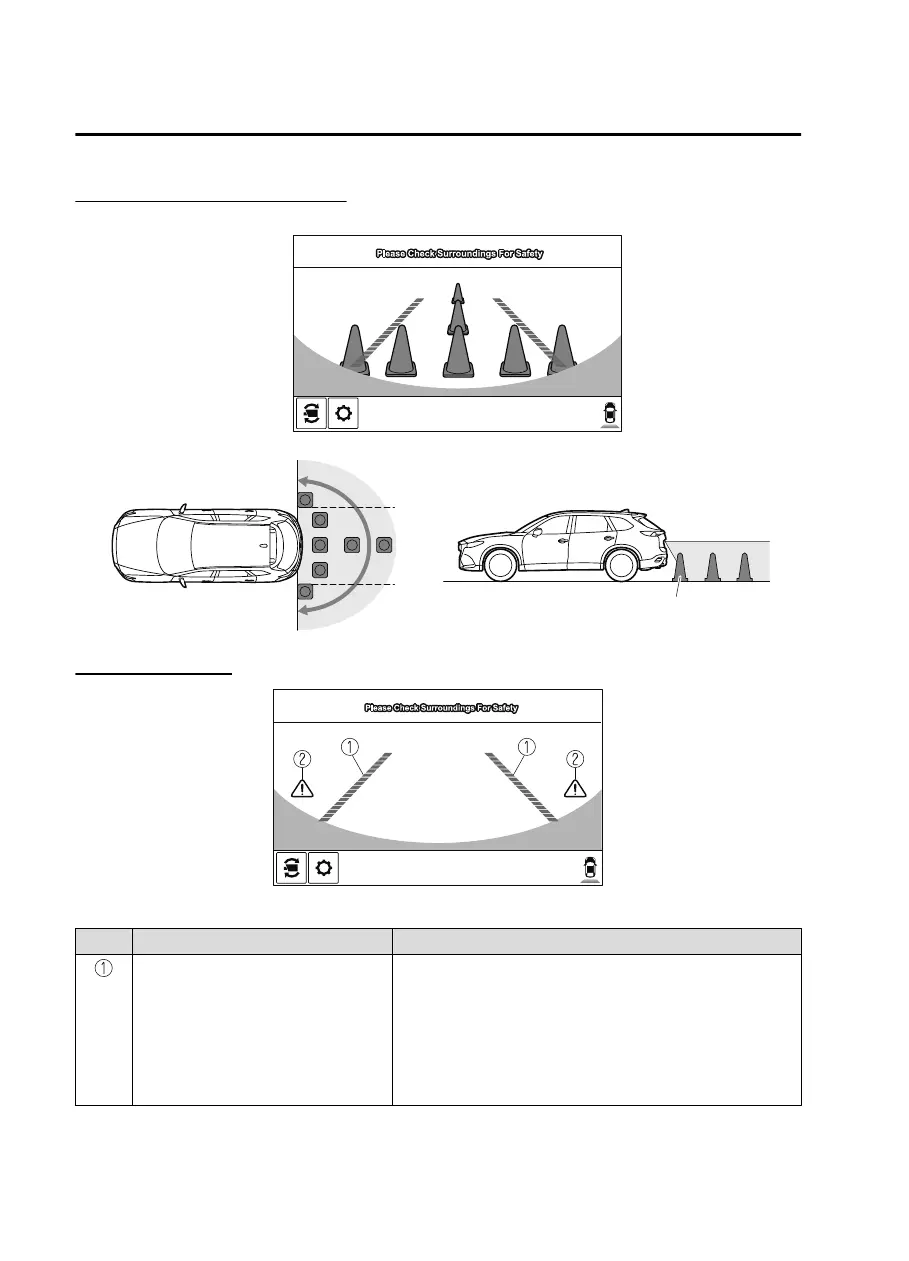

Range of displayed screen image
(Actual condition)
(Screen display)
Target object
Viewing the screen
Display/Icon Content
Extended vehicle width lines and dis‐
tance guide lines (red/blue)
These guide lines indicate the approximate width of the vehi‐
cle and distance to a point measured from the rear of the vehi‐
cle (from the end of the bumper).
The red lines indicate the points up to about 0.5 m (19 in)
from the rear end of the bumper.
The blue lines indicate the points from about 0.5 m (19 in)
and up to 2 m (78 in) from the rear end of the bumper.
