How to Use the System
Top view/Front view, Top view/Front wide view, Side view
Indication
Images are displayed on the screen when the 360°View Monitor switch is pressed with all of
the following conditions met.
The ignition is switched ON.
The selector lever is in a position other than R.

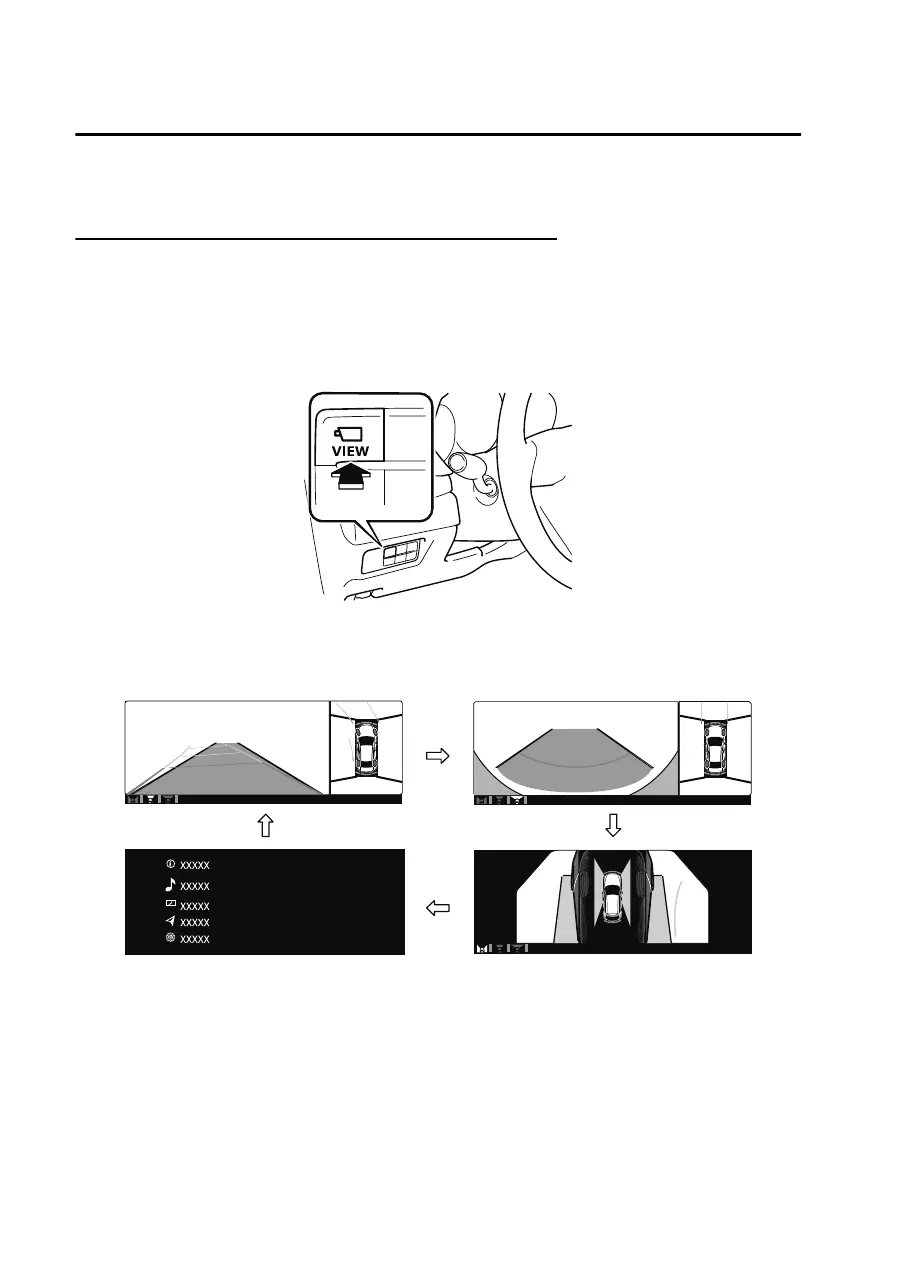

Display switching
The displayed screen can be changed each time the 360°view monitor switch is pressed.
Top view/Front view Top view/Front wide view
Home screen Side view
NOTE
When the selector lever is in R position, the displayed screen does not switch to the top
view/front view, top view/front wide view, or the side view.
Display of the top view/front view, top view/front wide view, or the side view stops even
with the display conditions met if any of the following conditions occurs.
When a switch around the commander knob is pressed.
When Driving
i-ACTIVSENSE
4-214
