Sensor Detection Range

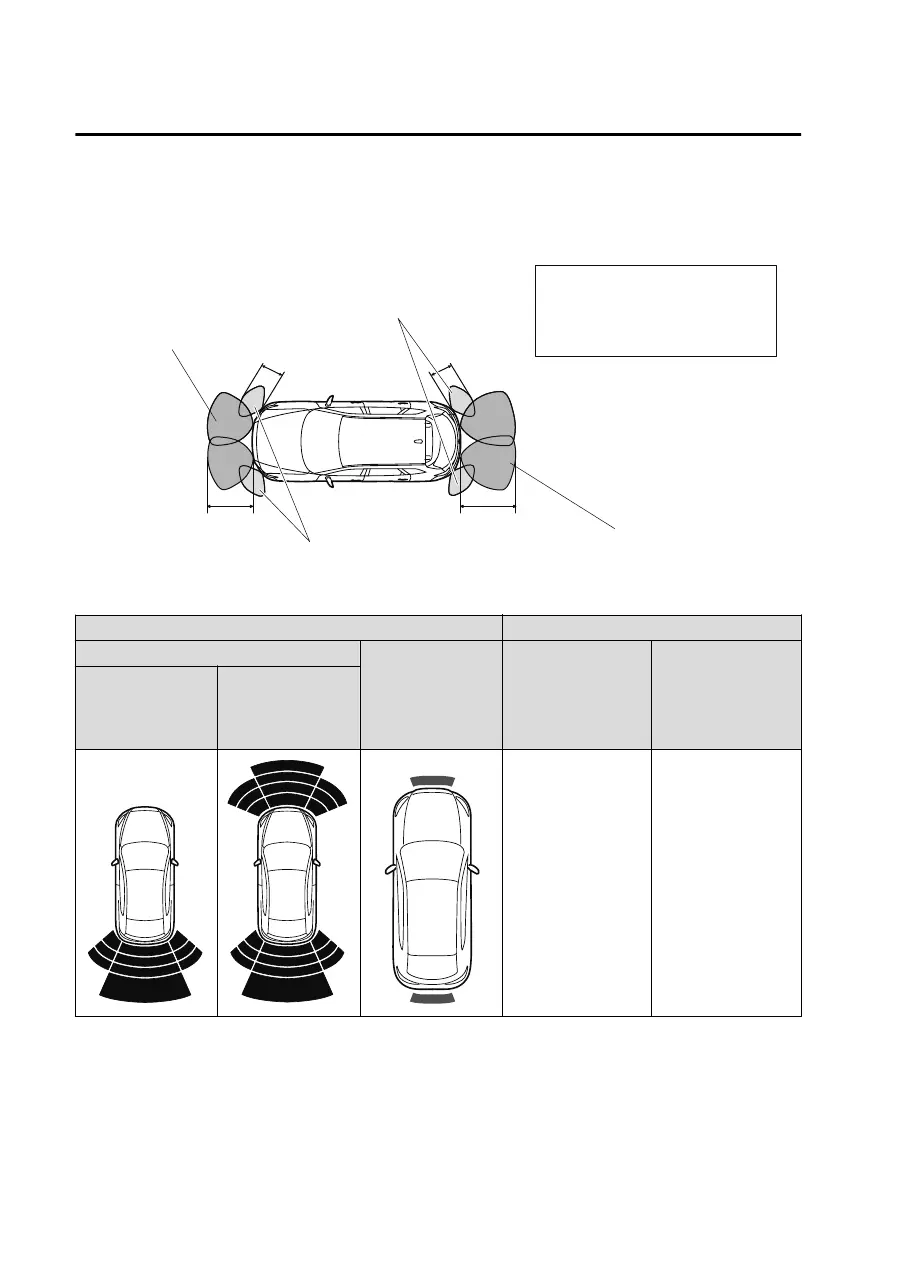

The sensors detect obstructions within the following range.
Front ultrasonic sensor detection range
Front corner ultrasonic sensor detection range
Rear ultrasonic sensor detection range
Rear corner ultrasonic sensor detection range
B
A
D
C
A: About 55 cm (About 21.6 in)
B: About 55 cm (About 21.6 in)
C: About 100 cm (About 39.3 in)
D: About 150 cm (About 59.0 in)
Viewing distance display
Display Distance between vehicle and obstruction
Without 360° view monitor
With 360° view
monitor
Front ultrasonic sen‐
sor
*
/Front corner
ultrasonic sensor
*
Rear ultrasonic sen‐
sor/Rear Corner ul‐
trasonic sensor
Without front ul‐
trasonic sensor and
front corner ultra‐
sonic sensor
With front ultra‐
sonic sensor and
front corner ultra‐
sonic sensor
Green
Front ultrasonic sen‐
sor:
Approx. 100―60 cm
(39.3―23.6 in)
Rear ultrasonic sen‐
sor:
Approx. 150―60 cm
(59.0―23.6 in)
When Driving
Parking Sensor System (Mazda Connect (Type A))
4-274
*Some models.
