DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
54 ROOM 25 A For protection of various circuits

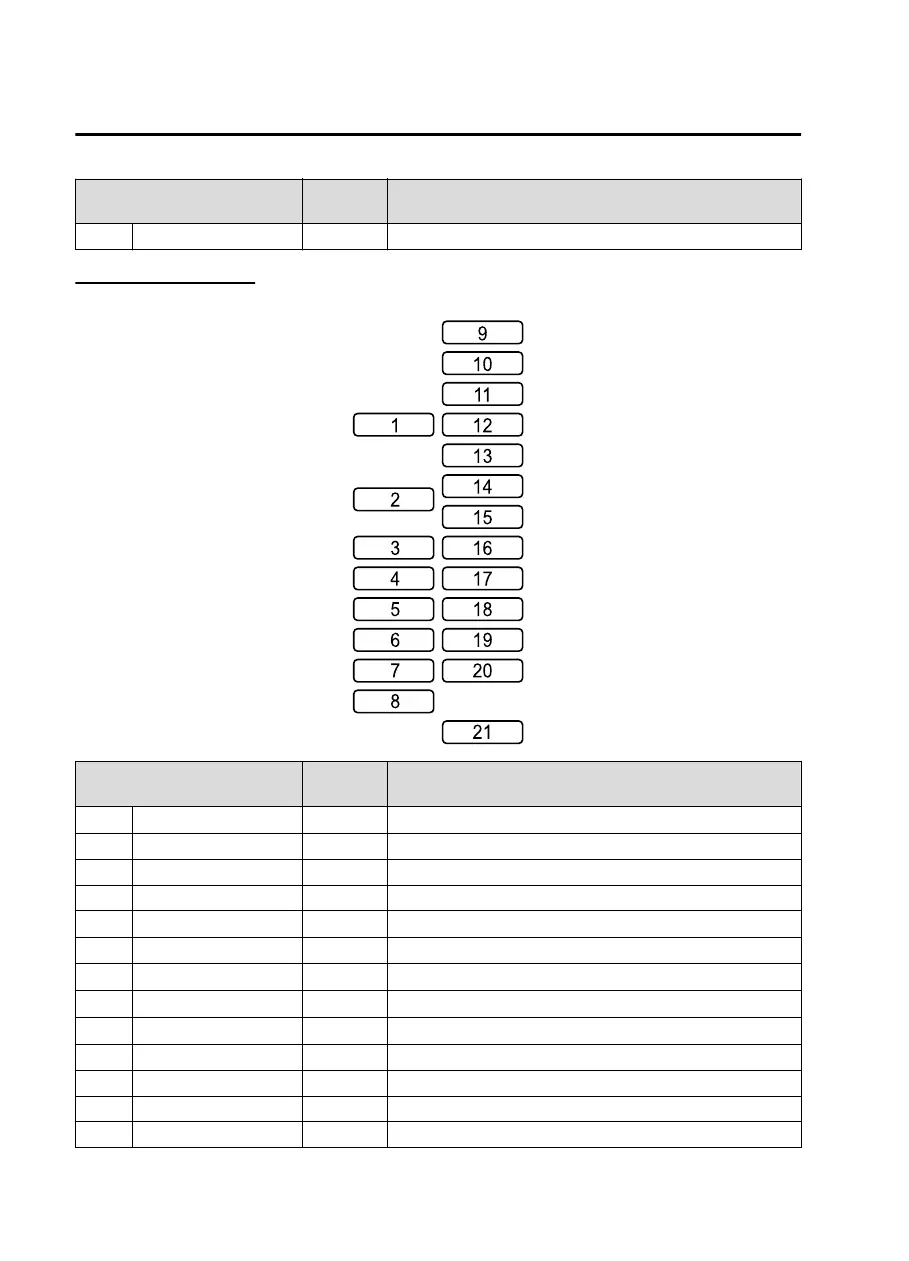

Fuse block (Left side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P.SEAT D 30 A
Power seat
*
2 P.WINDOW3 30 A Power windows
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5PLG 20 A
Power liftgate
*
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A
Seat warmer
*
8SRS2/ESCL 15 A
Trailer hitch
*
9 SUNROOF 10 A
Moonroof
*
10 INTERIOR2 15 A Audio system
11 ENG+BB 7.5 A Engine control system
12 MIRROR 7.5 A Power control mirror
13 AT IND 7.5 A AT shift indicator
Maintenance and Care
Owner Maintenance
6-50
*Some models.
