qFuse Panel Description

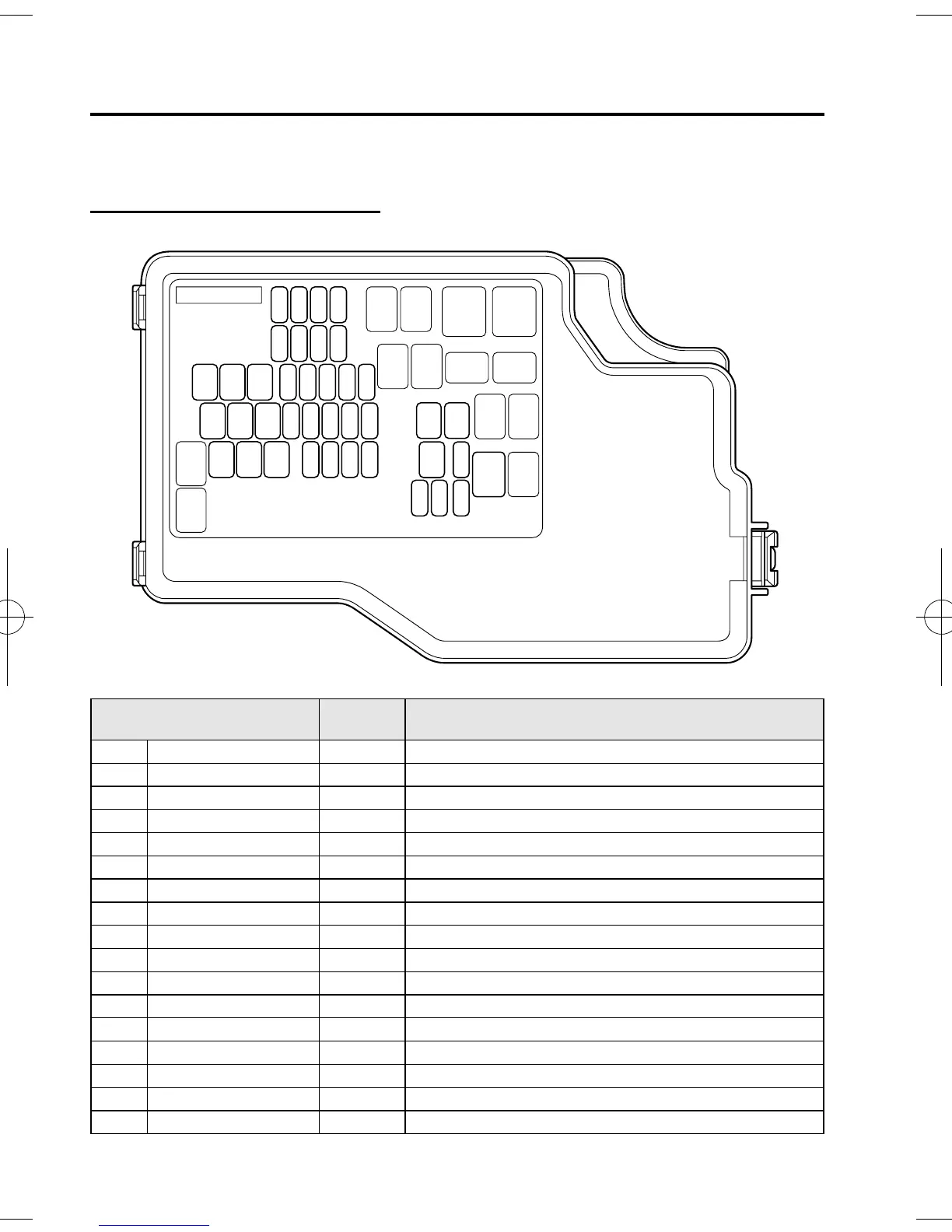

Fuse block (Engine compartment)
32 33 34 35
36 37 38 39
541 2 3 678
1312 14 15 16
22
11109
212019
23 24 25
29 30 31
27
28
26
17 18
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FAN 2 40 A Cooling fan
í
2 ENG MAIN 40 A Engine control system
3 BTN 1 50 A For protection of various circuits
4 A/C MAG 7.5 A Air conditioner
5 H/L HI 20 A Headlight high beam
6 FOG 15 A Fog lights
í
7 H/L WASH ――
8 SUNROOF 15 A Moonroof
í
9 F.DEF RH ――
10 F.DEF LH ――
11 FAN 1 40 A Cooling fan
12 ROOM 15 A Interior lights
13 TCM 15 A TCM
í
14 DSC 20 A Dynamic Stability Control system
í
15 BTN 2 7.5 A For protection of various circuits
16 AT PUMP ――
17 HEATER 40 A Heater
8-54
Maintenance and Care
í
Some models.
