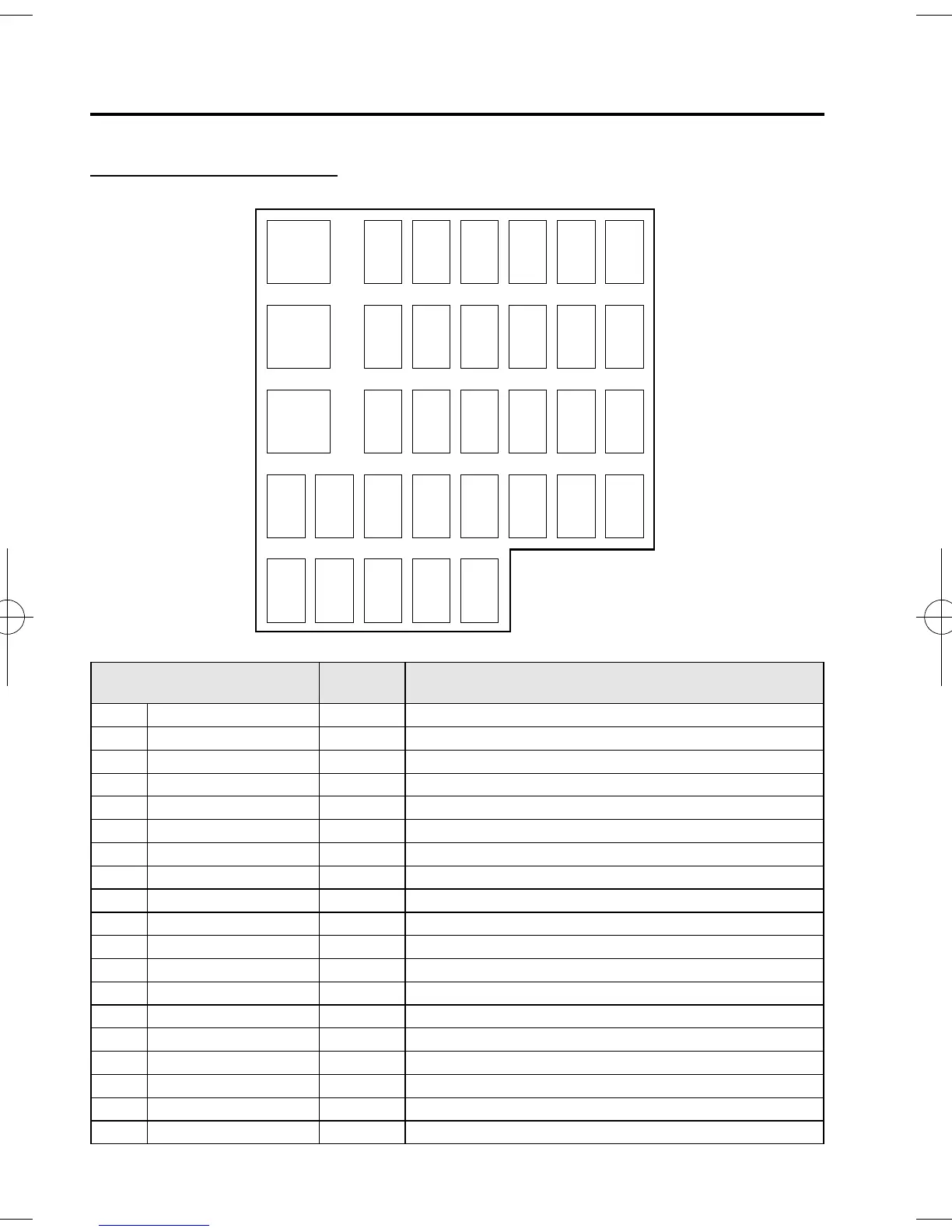

Fuse block (Passenger's side)
1 4 7 10131619
5 8 11 14 17 20
6 9 12 15 18 21
28 3022 24 26
29 3123 25 27
32 33 34
2
3
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 BOSE 30 A Bose
®
Sound System-equipped model
í
2 P SEAT 30 A Power seat
í
3 P.WIND 30 A Power window
4 D LOCK 25 A Door lock motor
5 ―― ―
6 ―― ―
7 ESCL 15 A Electronic steering lock
í
8 SAS 15 A Air bag
9 ―― ―
10 HAZARD 15 A Hazard warning flashers
11 METER 15 A For protection of various circuits
12 OUTLET 15 A Accessory sockets
13 R WIPER 15 A Rear wiper
í
14 CIGAR 15 A Lighter
15 ―― ―
16 HEATER 10 A Blower motor
17 MIRROR 10 A Power control mirror
18 ST SIG 10 A Starter sig
19 ―― ―
8-56
Maintenance and Care
í
Some models.
